Hager 3200 Series Grade 2 Deadlocks

Hager 3200 Series Grade 2 Deadlocks

FUNCTIONS

FEATURES

• Non-handed

• Conventional cylinder or Small Format Interchangeable Core option available

CERTIFICATIONS

• BHMA Certified ANSI A156.36 Grade 2

• ANSI A250.13 Severe Windstorm Resistant Component

• UL/cUL Listed for all functions up to 3 hours for “A” label single doors

• UL10C Positive Pressure Rated

• ADA - Thumbturn

SPECIFICATIONS

Standard Door Prep

• Cylinder hole: 2-1/8” (54 mm) diameter (bore)

• Latch hole: 1” (25 mm) diameter (coss bore)

Exposed Trim: Wrought brass, bronze or stainless stee

Mechanism: Steel, zinc dichromate plating

Keys: Two operating keys supplied per lock

Door Thickness:

• 1-3/4” (45 mm) only - 3214 SFIC and 3216

• 1-3/8” - 1-3/4” (35 mm - 45 mm) - Standard

• 2” - 2-1/4” (51 mm - 57 mm) available for conventional cylinder only - Must specify

Backset:

• 2-3/4” (70 mm) - Standard

• 2-3/8” (60 mm) - Optional

• 2-3/8” - 2-3/4” adjustable backset supplied with 3220 and 3221 (not available on 3214 or 3215)

Latchbolt:

• 1” (25 mm) Throw - Brass with concealed hardened steel roller to prevent sawing or cutting

• 1-1/8” x 2-1/4” (29 mm x 57 mm) Square Corner Faceplate

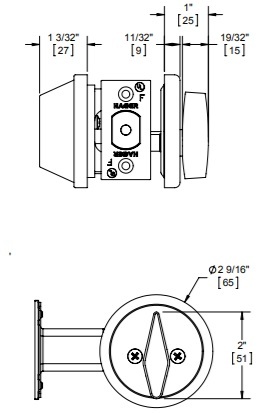

Hager 3200 Deadlock Dimensions
