Hager 3473 Corridor (ANSI F90) Function | 3400 Series Grade 1 Cylindrical Lock

Hager 3473 Corridor (ANSI F90) Function | 3400 Series Grade 1 Cylindrical Lock

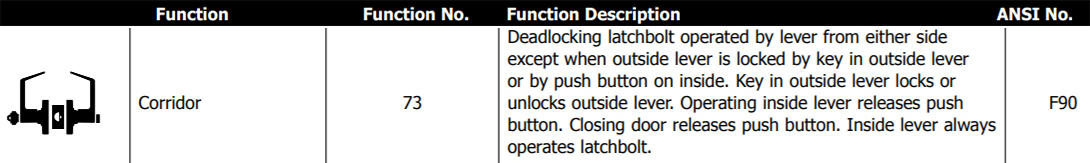

FUNCTION

FEATURES

• Heavy duty commercial, industrial, institutional

• No exposed mounting screws

• Non-handed

• Conventional cylinder, Small Format Interchangeable Core, and Large Format Interchangeable Core option available

CERTIFICATIONS

• BHMA Certified ANSI A156.2 Series 4000 Grade 1

• ADA Compliant ANSI A117.1 Accessibility Code

• ANSI A250.13 Severe Windstorm Resistant Component

• UL/cUL Listed for all functions up to 3 hours for “A” label doors

• UL10C Positive Pressure Rated

SPECIFICATIONS

Standard Door Prep

• 2-1/8” (54 mm) diameter (bore)

• Latch hole: 1” (25 mm) diameter (cross bore)

Exposed Trim

• Levers: Cast zinc

• Rose: Wrought brass or stainless steel

Rose Diameter

• 3-17/32” (90 mm) levers

Lock Chassis

• Heavy gauge steel, zinc dichromated for corrosion resistance

• Free wheeling

• Thru-bolt mounting

Keys

• Two operating keys supplied per lock

Door Thickness

• 1-3/8” - 2” (35 mm - 51 mm)

Latchbolt

• 1/2” (13 mm) throw, stainless steel

• 1-1/8” x 2-1/4” (29 mm x 57 mm) faceplate

• Square corner faceplates standard, round corner available

• Deadlocking latchbolt prevents manipulation when door is closed; keyed functions only

• 3/4” (18 mm) latch available

Strike

• 3935 ASA 1-1/4” x 4-7/8” (32 mm x 124 mm) strike - Standard

Lever Options
