Hager 3510 Passage (ANSI F75) Function | 3500 Series Grade 2 Cylindrical Lock

Hager 3510 Passage (ANSI F75) Function | 3500 Series Grade 2 Cylindrical Lock

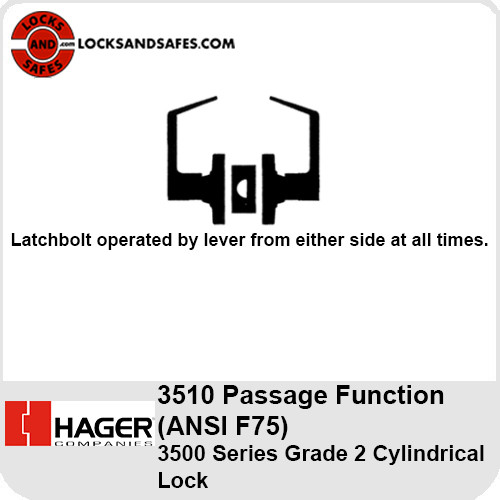

FUNCTION

FEATURES

• No exposed mounting screws

• Non-handed

• Conventional cylinder or Small Format Interchangeable Core option available

CERTIFICATIONS

• BHMA Certified ANSI A156.2 Series 4000 Grade 2

• ADA Compliant ANSI A117.1 Accessibility Code (levers only)

• ANSI A250.13 Severe Windstorm Resistant Component

• UL/cUL Listed for all functions up to 3 hours for “A” label single doors

• UL10C Positive Pressure Rated

SPECIFICATIONS

Standard Door Prep

• 2-1/8” (54 mm) diameter (bore)

• Latch hole: 1” (25 mm) diameter (cross bore)

Exposed Trim

• Knobs: Wrought brass or stainless steel

• Levers: Cast zinc

• Rose: Wrought brass or stainless steel

Rose Diameter

• 3-11/32” (85 mm) levers; 3” (76 mm) knobs

Lock Chassis

• Heavy gauge steel, zinc dichromated for corrosion resistance

• Free wheeling (levers only)

• Removable thru-bolts (Note: Failure to install thru-bolts and removable screw posts voids BHMA certification, UL rating and warranty)

Keys

• Two operating keys supplied per lock

Door Thickness

• Knobs: 1-3/8” - 1-3/4” (35 mm - 45 mm)

• Levers: 1-3/8” - 2” (35 mm - 51 mm)

Latchbolt

• 1/2” (13 mm) throw, stainless steel

• 1-1/8” x 2-1/4” (29 mm x 57 mm) faceplate for 2-3/4” (70 mm) backset

• 1” x 2-1/4” (25 mm x 57 mm) faceplate for 2-3/8” (60 mm) backset

• Deadlocking latchbolt prevents manipulation when door is closed; keyed functions and 25 function only

• Square corner faceplate standard, round corner available

• 3/4” (18 mm) latch available

Strike

• 3935 ASA 1-1/4” x 4-7/8” (32 mm x 124 mm) strike - Standard

Hager 3500 Cylindrical Lock Lever and Knob Options

Note: Apollo knob with SFIC will be subject to extended lead times, consult us for availability. SFIC not available on the Apollo knob in US3 finish.
