Description

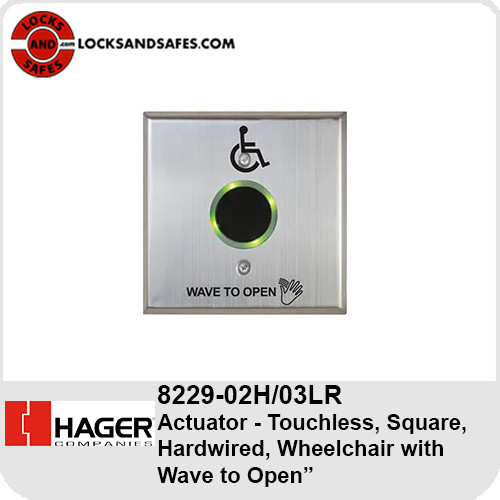

Hager 8229-02H/03LR Touchless Actuator | 4.5" Square, Hardwired, Wheelchair, Wave Symbol, "Wave to Open", Light Ring
Applications
Interior only
For use with ADA low energy operators
Ideal installations include medical facilities, assisted living facilities, offices, clean rooms, schools, and buildings with public access
Features
- Capacitive technology does not react to false inputs such as sunlight and reflections
- Stainless steel faceplate provides durability while also reducing visible deterioration caused by abrasive cleaning agents
- Touchless activation switches promote a reduction in the spread of germs
- Embossed graphics for durability
- Beveled edges
Material
18-gauge Stainless Steel
Size
Height: 4-1/2" (114mm); Width: 4-1/2" (114mm); Depth: 1-1/4" (32mm)
Voltage
12/24V AC/DC
Operating Temperature
-4°F to 122°F (-20°C to 50°C)
Switch Operation
Switch Type: Momentary
DPDT Switch: Not available
