Description

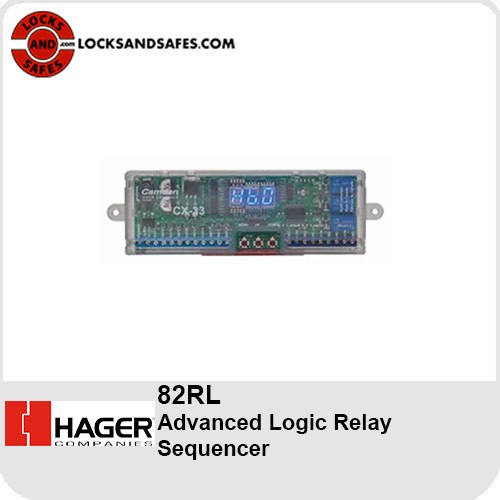

Hager 82RL | Advanced Logic Relay Sequencer
- Depth: 2"
- Height: 7/8"
- Inputs: 4 x Dry; 1 x Wet: min. 4.5V AC/DC
- Notes
- Electrical Life: 100,000 Cycles @ Rated Capacity
- Time Delay: (Hold 1 Timer)0-50 Seconds
- Time Delay: (Delay 1 Timer)0-15 Seconds
- Time Delay: (Hold 2 Timer)0-50 Seconds
- Time Delay: (Delay 2 Timer)0-60 Seconds
- Time Delay: (Hold 3 Timer)0-50 Seconds
- Time Delay: 0-10 Seconds
- Response Time: 0.5 Seconds
- Contact Rating: 3A @ 24Vdc
- Operating Temperature: -22°F to 185°F (-30°C to 85°C)
- Outputs: 3 x Form C (SPDT)
- Standard Mounting Fasteners: 2 x #6 Screws or Velcro
- Voltage: 12 to 30V AC/DC
- Width: 6"
