Hager 9600 Commercial Series Pocket Door Frame Kits
FEATURES
• Commercial Series Pocket Door Kit
• Meets performance requirements of ANSI/BHMA A156.14 (Grade 1) for sliding doors by exceeding 100,000 cycles in operation
• Type: S02311-150
• ADA Compliant
SPECIFICATIONS
• V-groove jump proof aluminum track
• Pre-assembled header assembly goes up quickly
• Easy door installation and removal for painting and repair
• Real wood split studs, size 3/4” x 1-3/4” (19 mm x 44 mm) width relative to length, steel encased for rigidity and to prevent fastener penetration into the pocket
• Header Assembly attaches to rough studs at both ends - split studs nail to Header Assembly - no connections to rough header
• 2 pair of split studs with wood inserts

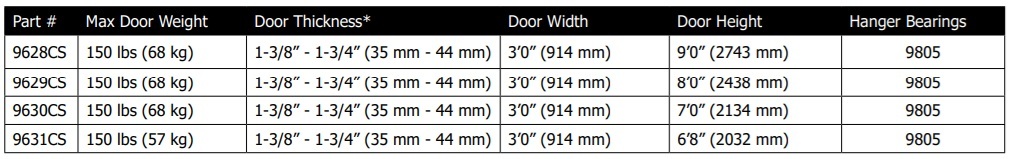

• See chart below for appropriate kit
For doors in excess of 150 lbs, we recommend the use of our 9850HD or 9852HD Pocket Door kits Installation Notes: For bi-parting doors, use Hager Mullion Converging Kit 9639CS (sold separately). Use of Soft Close mechanism exceeds ADA 5 lb. of opening force threshold.

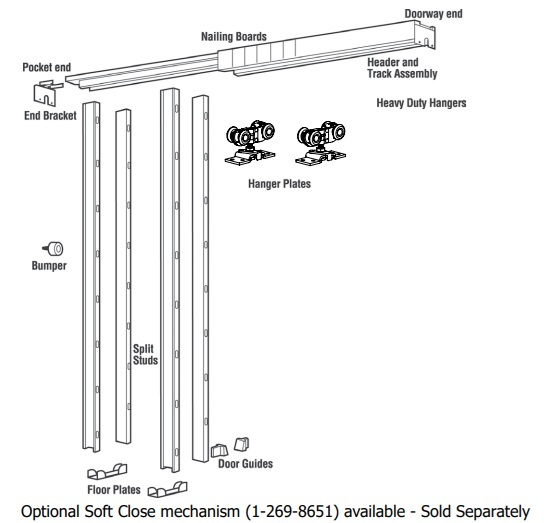

CONTENT
1 2”x4” Header assembly
2 Pair of split studs
2 Rollers - 150 lbs
2 Hanger Plates
1 Rubber Bumper
1 Pair of floor guides
1 Hanger wrench
2 Floor plates
1 Doorway end bracket
1 Pocket end bracket
