Description

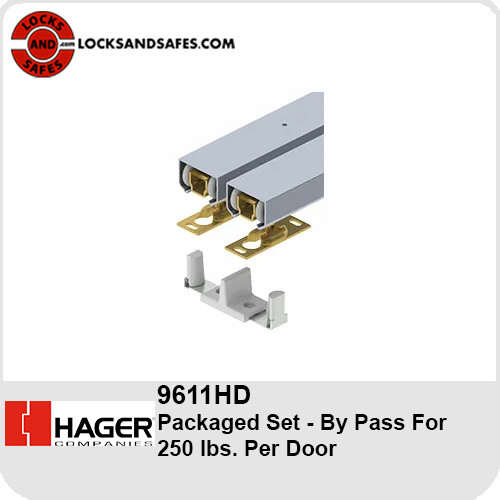

Hager 9611HD Packaged Set - By Pass For 250 lbs. Per Door
FEATURES
• Door weight up to 250 lbs. per door
• Door thickness 1-3/8” or 1-3/4”
• Quick-release hangers allow for easy door hanging and removal
• Optional soft-close (1-269-8651) for doors up to 150 lbs.
SYSTEM INCLUDES (9621CS PARTS BAG)
• (2) 9303HD Aluminum track
• (4) 9806 1-wheel hangers
• (2) Flush cup pulls (2-1/8” ID)
• (1) Floor channel door guide
• 9621

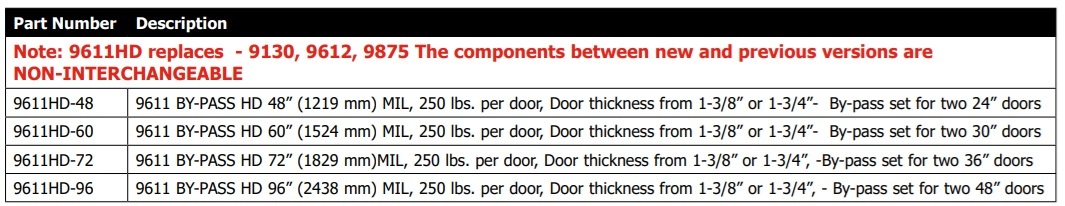

Hager 9611HD Product Specification
CERTIFICATIONS
• Meets performance requirements ANSI/BHMA A156.14 (Grade 1) for sliding doors by exceeding 100,000 cycles
• Type D02411-60

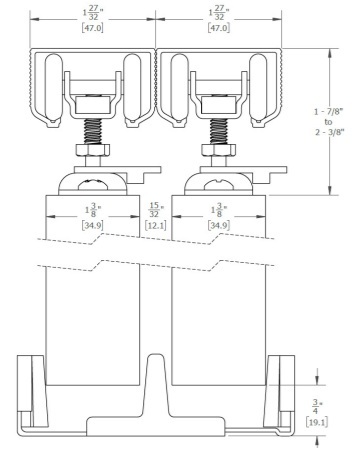

Hager 9611HD Diagram
