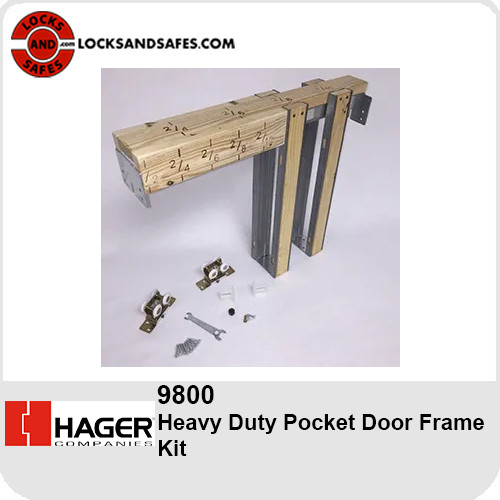

Hager 9800 Heavy Duty Pocket Door Frame Kits

Hager 9800 Heavy Duty Pocket Door Frame Kits

FEATURES

Heavy-Duty Series Pocket Door Kit

• Meets performance requirements of ANSI/BHMA A156.14 (Grade 1) for sliding doors by exceeding 100,000 cycles in operation

• Type: D01311-250

• ADA Compliant

SPECIFICATIONS

• For doors 1-3/8” - 1-3/4” (35 mm - 44 mm) thick, up to 4’0” (1219 mm) wide and 8’0” (2438 mm) or 8’6” (2591 mm) high, weighing up to 250 lbs. (113 kg)

• Pre-assembled header assembly goes up quickly

• Heavy-Duty, V-groove, jump-proof aluminum track

• Real wood split studs, size 3/4” x 1-3/4” (19 mm x 44 mm) width relative to length, steel encased for rigidity and to prevent fastener penetration into the pocket

• Header Assembly attaches to rough studs at both ends - split studs nail to Header Assembly - no connections to rough header

• 3 Pairs of split studs with wood inserts for 9850HD

• 2 Pairs of split studs with wood inserts for 9852HD

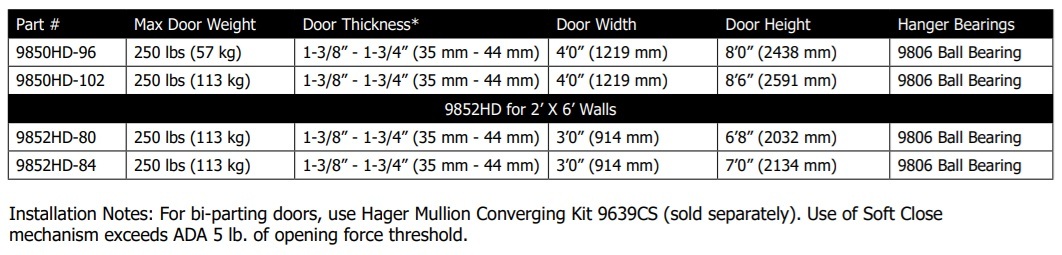

• See chart below for appropriate kit

Installation Notes: For bi-parting doors, use Hager Mullion Converging Kit 9639CS (sold separately). Use of Soft Close mechanism exceeds ADA 5 lb. of opening force threshold.

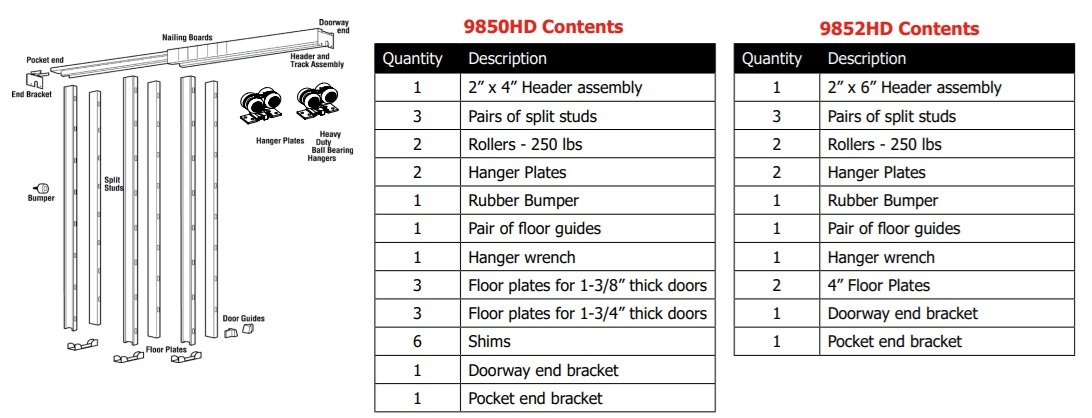

CONTENT
