Marks USA

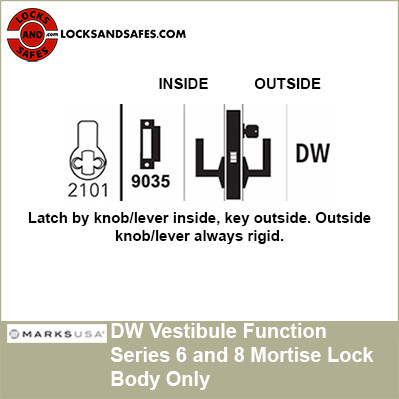

Marks USA Series 6 and 8 Mortise Lock Body Only | Vestibule Function - DW
No reviews yet
Write a Review
Write a Review
Marks USA
Marks USA Series 6 and 8 Mortise Lock Body Only | Vestibule Function - DW
SKU:
MARKS-DW-6and8LockBody
Shipping:
Calculated at Checkout
$145.50
Don't see the quantity, finish, or function you are looking for? We can mix, match and "BUILD" the item option set you are looking for - Just call us at 860-537-1328 and our sales staff will assist !
Description
Marks USA Series 6 and 8 Mortise Lock Body Only | Vestibule Function - DW
Marks Series 6 (2-3/4" Backset) and 8 (2-1/2" Backset) Mortise Lock Body Table of Functions
Features
Series 6
• Backset: 2-3/4”
• Bolt throw: Cast alloy full 1” throw
• Latch throw: 5/8” (anti-friction)
• Case: High pressure cast Zamac, baked enamel finish
• Front: 1-1/4” x 8”, Flat or 3° bevel
• Hubs: 9/32” (7.2mm) on square
Series 8
• Backset: 2-1/2”
• Bolt throw: Cast alloy full 1” throw
• Latch throw: Solid brass 1/2” throw, reversible
• Case: High pressure cast Zamac, baked enamel finish
• Front: 1-1/16” x 7-5/8”, Flat or 3° bevel
• Hubs: 9/32” on square
Marks Series 6 and Series 8 Mortise Lock Body Dimensions
Additional Information
- Option:Choose Cylinder (What is a Cylinder? Click link here to know more):
- https://blog.locksandsafes.com/2021/03/17/lock-cylinder-and-keyway-guide/
- Option:Choose Finish (What is this? Click here to see our detailed Door Hardware Finish Guide):
- https://blog.locksandsafes.com/2020/07/28/lock-and-door-hardware-finishes/
