Description
Marks 60 Series Interior Tubular Locks
Features
• Latch Face: 1” x 2-1/4” standard
• Backset: 2-3/4” with 2-3/4” T-strike with square corners, 2-3/8” with 2-1/4”, radius corner full lip strike, option E6, N/C
• Door thickness: 1-3/8” to 1-3/4”
• Roses: 2-9/16” diameter
• Privacy Function with kick-off latch
Functions
F75 PASSAGE: Latch by knob/lever either side.
F76 PRIVACY: Latch by knob/lever either side unless outside knob/lever locked by push-button from inside. Outside unlocks by turning inside knob/lever, outside emergency turn or closing door
DUMMY TRIM OUTSIDE: Dummy trim outside ONLY.

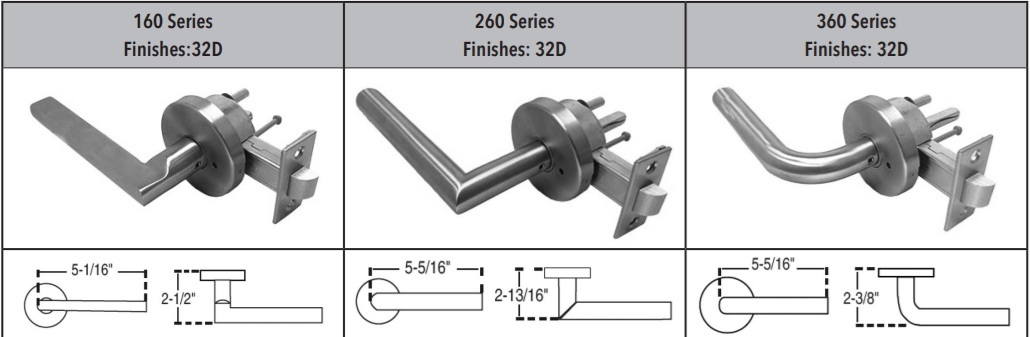

Marks 60 Tubular Lock Lever Style
