Norton 356 Interior Gate Door Closer | Norton Specialty Closer

Norton 356 Interior Gate Door Closer | Norton Specialty Closer

The 356 specialty closer is a double-acting, non-handed specialty closer with a flat arm, designed for interior office rail gates, partitions, and restroom doors up to 75lbs.

APPLICATION

• Double acting, non-handed

• Maximum weight: 75 lbs.

• Dwarf doors from 2'2" to 3'0" wide (660 x 914mm)

PRODUCT DESCRIPTION AND FEATURES

• Recommended for office rail gates, partitions, and lavatory stall doors

• Body mounts under the gate

• Surface mounted top pivot: 3541020

• 1-3/4" door thickness

• Maximum opening 90°

• Arm adjustment door normally comes to rest at closed position. If door is to remain open, arm is set on spindle so door comes to rest at 90°

• Package also includes closer bracket and arm that may be surface mounted or mortised

• Frame carries full weight of door

• Quiet control; no slamming or flapping

• All moving parts enclosed and fully immersed in lubricating checking fluid

• Painted finishes only

• Not compliant with ICC/ANSI A117.1 low opening force requirements

COMPLIANCE

• ANSI C09503

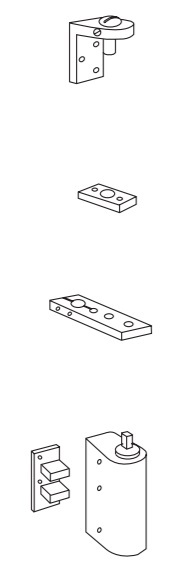

TECHNICAL INFORMATION
