The 5020 is a double-acting, center-hung, shallow-depth floor closer designed for standard door frame installation for interior doors weighing up to 250lbs.

Note: Center hung closers are not allowed for use on fire rated doors

APPLICATION

Interior Doors

• Centering Arm

• Weight to 250 lbs.

• Door Sizes up to 4'0"x 8'0" (1219 x 2438mm)

FEATURES

• Double Acting

• Non-handed

• 340 top pivot included

• Order spring sizes 3 through 5:

- Model 5023: 36" (914mm) Door Width

- Model 5024: 42" (1067mm) Door Width

- Model 5025: 48" (1219mm) Door Width

• Centering arm with adjustment screws in faces of door (critical for double acting doors)

• Available non-hold open (NBC) or automatic hold open (ABC) specify 90°, 105°

• Door may only swing 130° in either direction

• Auxiliary stop required

• Separate and independent valves for closing speed, latch speed and backcheck

• Available with floor plate or threshold installation (floor plate shown)

• Cycolac, rustproof cement case

• Interchangeable spindle adapters

• Furnished with wood and machine screws

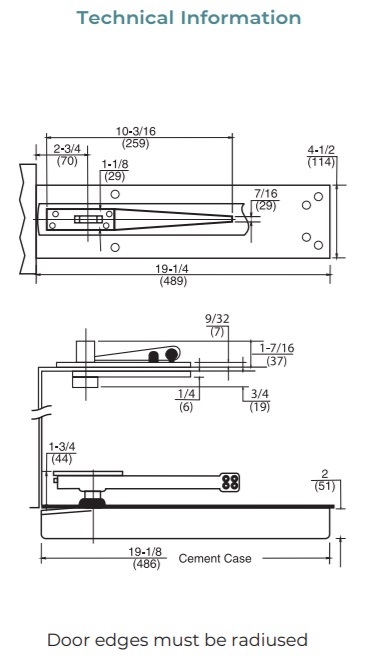

Norton 5020 Technical Information
