The 5040 is a single-acting, center-hung, shallow depth floor closer designed for standard glass door installation for interior doors weighing up to 200lbs.

APPLICATION

• Interior, Full Glass Doors

• Weight to 200 lbs.

• Door Sizes 3'6" x 8'0" (1067-2438mm)

FEATURES

• Single acting

• Handed

• Special top pivot included

• Top and bottom patch fittings for tempered glass doors 3/8" - 1/2" thick

• Order spring sizes 3 through 5:

- Model 5043: 36" (914mm) Door Width

- Model 5044: 42" (1067mm) Door Width

• Available non-hold open (NBC) or automatic hold open (ABC) specify 90° or 105°

• Separate and independent valves for closing speed, latch speed and backcheck

• Floor plate standard. For threshold application, an extended spindle is required (floor plate shown). There is no vertical adjustment

• Cycolac rustproof cement case

• Interchangeable spindle adapters

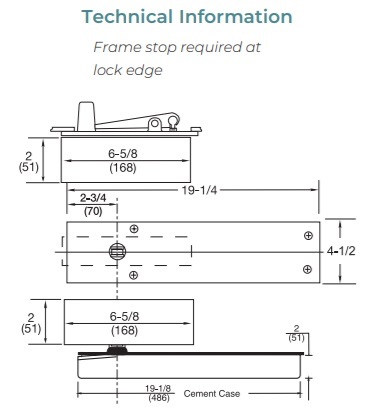

Norton 5040 Technical Information
