Norton 608 Series Single or Double Acting Center Hung Door Closer | Overhead Concealed Closer
No reviews yet
Write a Review
Write a Review
Norton
Norton 608 Series Single or Double Acting Center Hung Door Closer | Overhead Concealed Closer
SKU:
NORTON-608
Shipping:
Calculated at Checkout
$778.41
Don't see the quantity, finish, or function you are looking for? We can mix, match and "BUILD" the item option set you are looking for - Just call us at 860-537-1328 and our sales staff will assist !
Description
-->
Norton 608 Series Single or Double Acting Center Hung Door Closer | Overhead Concealed Closer
APPLICATION
• Exterior or interior doors
• Door weight up to 200 lbs.
• Maximum door size: interior 3'8" x 8', exterior 3'6" x 8'
FEATURES
• Single or double acting
• Non-handed
• Available in non-hold open (N)
• Available in automatic hold open (both directions) Specify 90° or 105° (A)
• Adjustable closing and latch speeds
• Includes 608011 bottom pivot
• Frame stop is required. See Door Control Accessories Catalog (part number 60131). Contact us.
• Product should always be used with auxiliary floor or wall stop
SPECIFICATIONS
Compact cast iron body to fit in minimum 1-3/4 x 4" aluminum frame. Closer shall have separate and independent closing and latch speed control valves. Optional hold open at 90 or 105°. For center hung applications, arm shall have door centering adjustments and be directly connected to the closer spindle. Closer body is non-handed, single or double acting. Vertically adjustable center hung bottom pivot included.

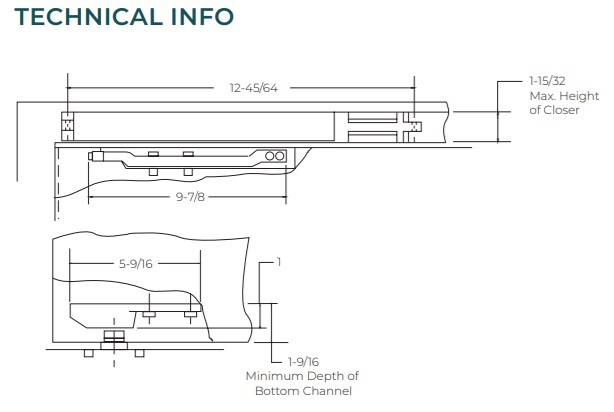

NORTON 608 TECHNICAL INFO
Additional Information
- Option:Choose Handing (What is handing? Click link here to know more):
- https://blog.locksandsafes.com/2020/07/28/door-hardware-handing-guide/
- Option:Choose Finish (What is this? Click here to see our detailed Door Hardware Finish Guide):
- https://blog.locksandsafes.com/2020/07/28/lock-and-door-hardware-finishes/
