Norton 6300 Series Frame Mounted Electromechanical Operator | Low Energy Operator

Norton 6300 Series Frame Mounted Electromechanical Operator | Low Energy Operator

The Norton Rixson 6300 Series Low Energy Operator offers a broad set of intelligent functions, such as power close, latch assist and obstruction detection to safely secure a variety of moderate to high traffic openings. A unique design with one of the slimmest profiles available allows the 6300 to blend more seamlessly with the frame while fitting challenging applications with minimal header space. A modular design, simple controls, and new WiFi interface via a mobile device make for easy installation and setup.

FEATURES

• Push and pull side mounting

• Non-handed

• Activated by wall switch, hands-free and RF devices

• Door size: min width 36", max width 48", max weight 250 lbs.

• Aesthetically pleasing, slim profile

• Modular design

• Adjustable opening force

• Adjustable closing power

• LCD screen

• WiFi Interface - No connection to building's WiFi is required

SUPERIOR USER EXPERIENCE

• Operator is a secure, password protected WiFi hot spot - no connection to building’s IT required

• Simple setup; no app required

• View status and make adjustments without removing cover

• Built-in logic to support single use restroom applications - no external relay boards, logic modules, position switches required

SHARED PLATFORM

• Mix and match 6300, 6200 and 5200 Series throughout facility to maximize value to customer

• Shared aesthetics with 6300 and 6200 Series

• Modular installation - one-person install

• Easy set up and adjustments header space

FUNCTIONS

• Adjustable Hold Open

– Amount of time a door will stay in the full open position after an activation

• Blow Open for Smoke Ventilation

– Door opens when signal is received from alarm system allowing air or smoke to flow through opening

– Door will stay open until signal from alarm system is stopped

• Emergency Interface Relay (fire panel input)

– Door closes and ignores any activation input until signal is discontinued

• Infinite Hold Open

– Door will hold open at set position until power is turned off

• Latch Assist

– At closed position, after an activation, the door is pulled in

– After the door has closed, the door is pulled in to assist with latch release engagement

• Obstruction Detection

– Open: door closes if it hits an obstruction while opening

– Close: door will reverse to open position if it hits an obstruction while closing

– Close (Selectable - stop on stall): door will stop once it hits an obstruction and will rest against the obstruction until removed

• Open Delay

– Delays operator opening for locking hardware

• Outside Wall Switch Disable

– When contact is closed, outside wall switch is disabled

• Power Assist

– Senses the door is being opened manually and applies small amount of power to assist user in opening the door with force less than 5 lbs.

– Door opens only as far as it is moved manually, then closes once released

• Power Close

– Additional force to assist door closing between 7° and 2°

• Presence Detector Input

– Input for external sensor to detect presence at door open or close position only

• Push & Go

– As the door is manually opened, the operator “senses” movement and opens door to the full-open – position

• Selector Mode Switch

– Off - Disables signal inputs unless Blow Open is activated

– On - Activates signal inputs

– Hold Open - Activates the unit (unless blow closed is activated on 6300) to the hold open position

• Vestibule Delay

– When the wall switch is pressed, first door in vestibule will open. Second door will open once vestibule door delay has expired. Delay is adjustable.

ELECTRICAL DATA

• Power input 120 VAC, 3A, 60Hz

• Current draw 1.5A

• Power output 24VDC @ 1.3A max draw (less accessories)

CERTIFICATIONS

• ANSI/BHMA A156.19 certified

• UL325/991 certified

• UL10C positive pressure up to 3 hours

• Complies with requirements for the Americans with Disabilities Act (A.D.A)

• Manufactured in an ISO 9001 and ISO 14001 certified facility

SPECIFICATIONS

• Door Control (interior) (exterior) closing force shall be adjustable to ensure adequate closing control.

• Door Operator shall simulate conventional door closer opening and closing forces unless the power operator motor is activated.

• Door Operator shall have electronic backcheck to cushion the door speed if door is opened violently. [(Door Operator shall be AUTOMATICALLY ACTIVATED by either a slight push or pull in the direction of opening swing - Push & Go.) (Door Operator shall be SELECTIVELY ACTIVATED by external initiating device, i.e. wall switch, etc.) (Door Operator shall be both AUTOMATICALLY ACTIVATED and SELECTIVELY ACTIVATED.)]

• Operator shall have selectable latch boost to provide additional closing force to overcome conditions that may prevent door from latching.

• Unit shall have delay switches for motor activation, electric lock interfacing, and hold open time

• Units shall interface with latch retraction exit devices or similar products and have 24VDC @ 1.3A maximum (less accessories) output for connection of electric strike, lock, radio frequency receiver, etc.

• Unit shall have a three-position Selector Mode Switch that will permit the unit to be switched “ON” to monitor for function inputs, switch to “H/O” for infinite hold open function or switched “OFF” which will disable function inputs allowing unit to be used as a manual door closer.

• Unit shall be U.L. Listed for automatic closing door.

• The Unit shall be adjustable to provide compliance with the requirements of the Americans with Disabilities Act (ADA). Unit shall be certified by BHMA to meet A156.19 requirements.

• Unit shall meet UL325/991, UL10C standards.

NORTON 6300 APPLICATIONS

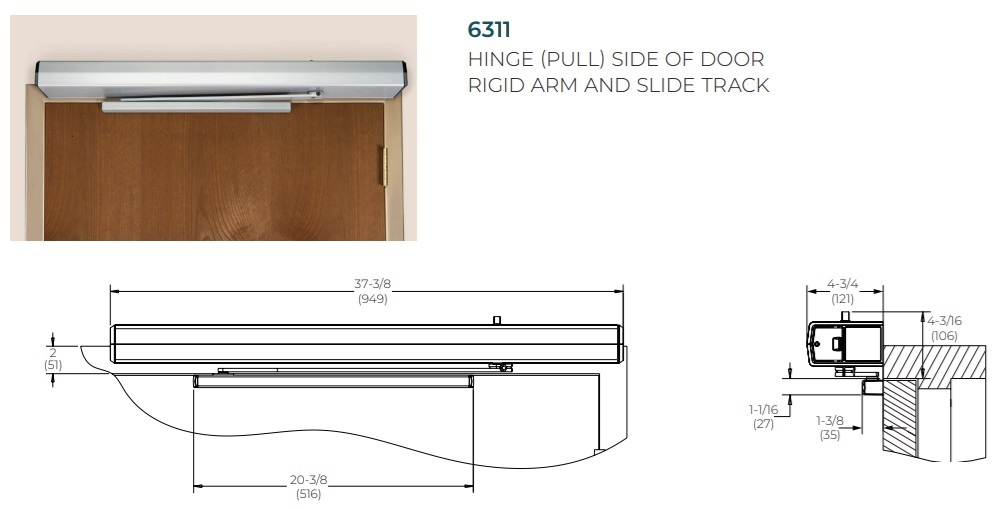

Norton 6311 Details

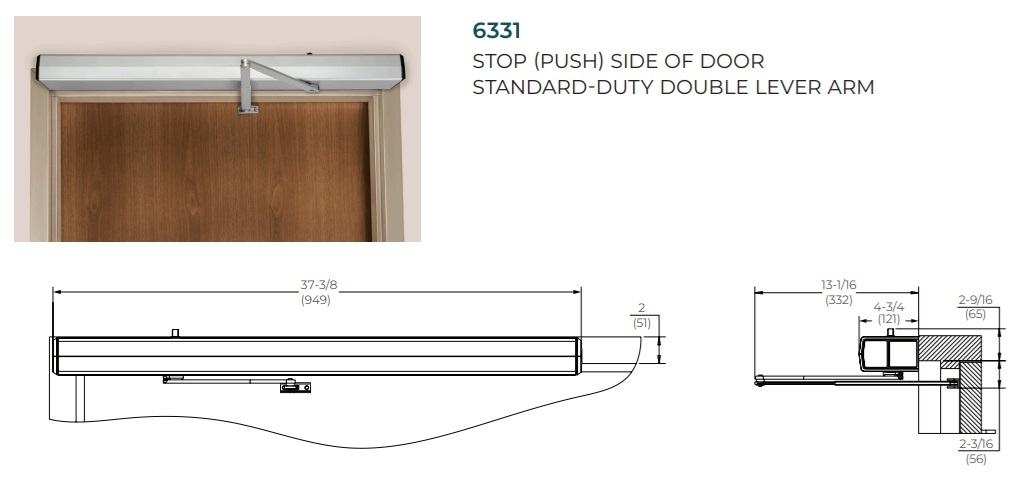

Norton 6331 Details

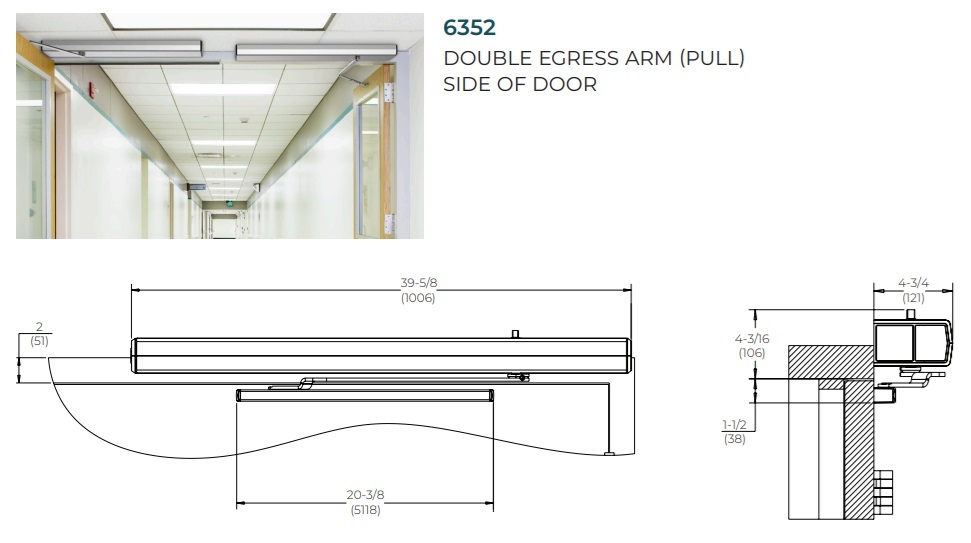

Norton 6352 Details

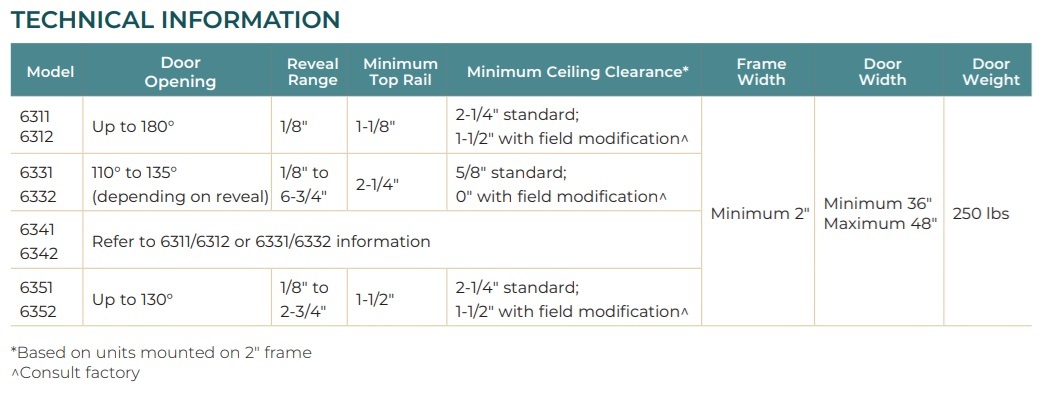

Norton 6300 Technical Details

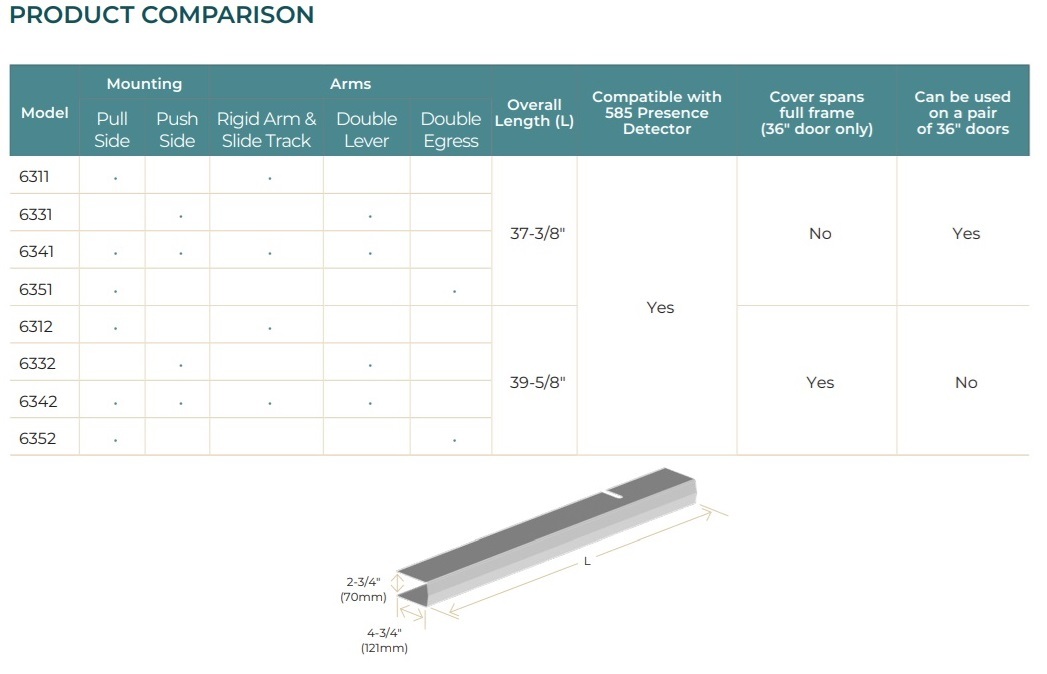

Norton 6300 Product Comparison Chart
