The Norton Rixson Power Track® Closer-Holders combine the functions of a single point electromechanical door holder with the proven reliability of a 7700 Series door closer. The track assembly contains an arm slide and solenoid operated hold open mechanism.

Units can be installed on a single door or a pair of doors when controlled by compatible UL listed detection equipment such as area ceiling detectors, pull stations, and remote alarm panels.

FEATURES

• Selective single-point hold open

• Fixed spring size 5

• Push or pull side mounting (closer mounted on door)

• Standard separate and independent latch, sweep, and backcheck intensity valves

• Spring loaded buffer block at the point of hold open prevents over travel of the arm slide and provides a cushioned dead stop

• Additional floor or wall stop is recommended

• Voltage: 24VDC or 120VAC

• NorGlide® closer fluid

BENEFITS

• Ideal for low ceiling clearance applications

• Installation based on the door angle needed

• Doors automatically close if activated by fire alarm

CERTIFICATIONS

• ANSI/BHMA A156.15

• CAL FIRE, 3550-0944:0106

• Environmental Product Declaration (EPD)

• UL10C positive pressure up to 3 hours

• UL-cUL listed

• Manufactured in an ISO 9001 , ISO 14001 facility

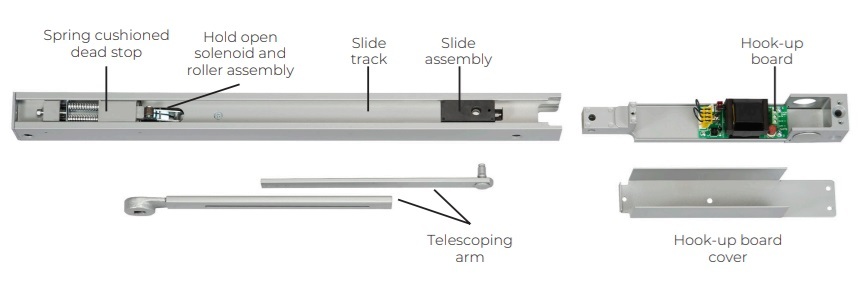

NORTON 7700PT Closer Detailed View

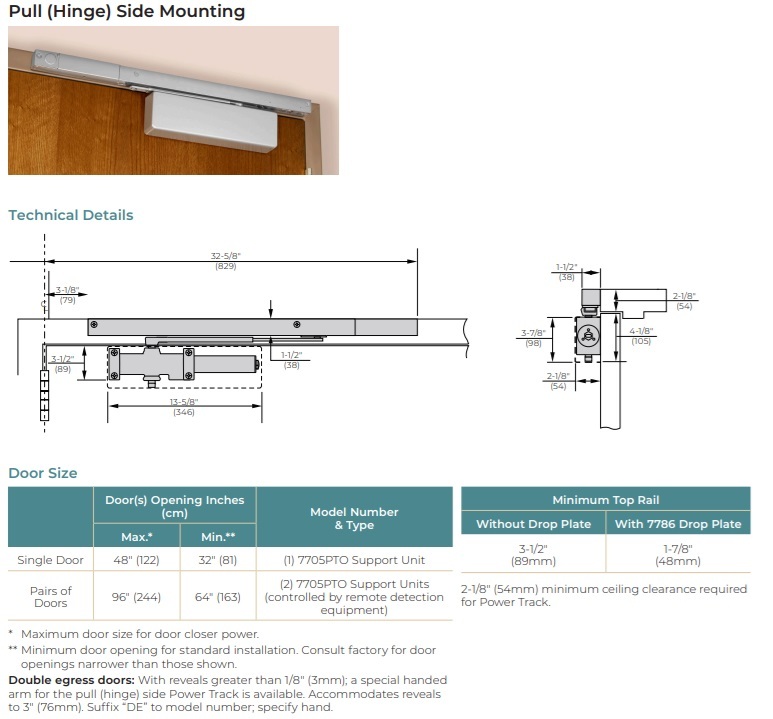

NORTON 7700PT Closer Pull Side Mounting Details

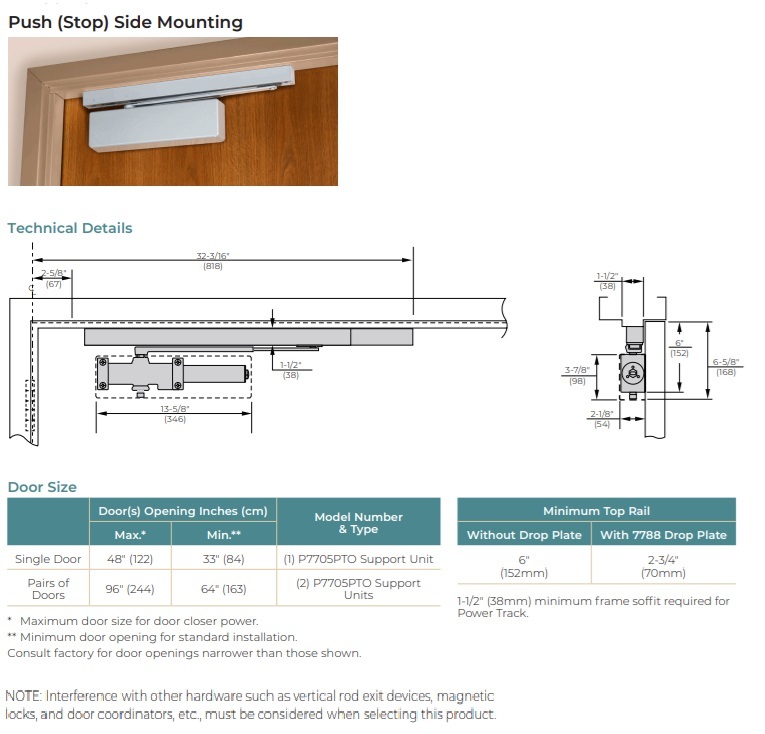

NORTON 7700PT Closer Push Side Mounting Details
