Norton F327 Series Independently Hung Floor Closer | Norton Heavy Duty Floor Closer

Norton F327 Series Independently Hung Floor Closer | Norton Heavy Duty Floor Closer

The F327 is an independently-hung floor closer designed for 1 3/4" door frame installation for interior or exterior doors. For doors over 250lbs., consult us.

APPLICATION

• Single Acting, Handed

• Interior or Exterior Doors

• Door Width up to 4'0" (1219mm)

• For Doors over 250 lbs. Consult Us

• 1-3/4 doors only

FEATURES

• Used as a concealed floor closer for independently hung doors – butt hinges, pocket pivots, or continuous hinges

• Closer does not support weight of door Note: Hanging means must be specified when ordering. Check the product template. If your hanging means are not listed, contact factory for a special layout and pricing

• Includes closer, mortised rail and arm with slider

• 90° maximum door swing

• Auxiliary stop recommended

• Separate and independent valves for closing speed, latch speed and backcheck

• Floor plate standard. For threshold applications a 1/2" extended spindle is required

• Cycolac rustproof cement case

• Not available in “PH”, “DA”, or Hold Open • Furnished with wood and machine screws

COMPLIANCE

• This closer carries a UL Listing for 3 hour fire door assemblies. Fire rated hanging means required

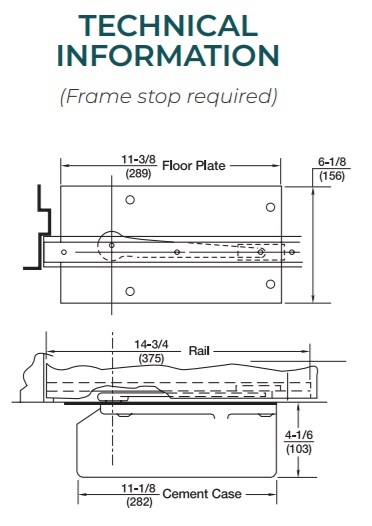

Norton F327 Technical Information
