The SEC27-180 specialty closer is a single-acting, handed, 3/4" offset-hung closer designed for interior security doors up to 650lbs. such as non-cell doors in detention or behavioral health facilities.

APPLICATION

• Single acting, handed

• Interior security doors

• Weight to 650 lbs.

• Door width up to 4'0" (1219mm)

PRODUCT DESCRIPTION AND FEATURES

Recommended for non cell doors in detention facilities or psychiatric centers

• Non-hold open only

• FA180 top pivot included

• FA19 intermediate pivot recommended; order separately

• Door will swing to 180°, trim permitting

• Built-in hydraulic backcheck at 160°

• Cast iron cement case with cast in extensions for positive anchorage in floor

• Solid 1/4" (6mm) thick steel floor plate

• Cast-in lip to provide positive containment of cement case in floor

• Sealed closer standard

• Heavy-duty forged bottom arm

• Adjustable closing speed

• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Every additional 30" (762mm) of door height warrants another intermediate pivot

• Delayed action not available

• Furnished with Torx® screws

• PH option not available

COMPLIANCE

• This closer is for fire-rated openings (up to 3 hour assemblies). Only non-hold open closers are used. FA19 intermediate pivot required: order separately.

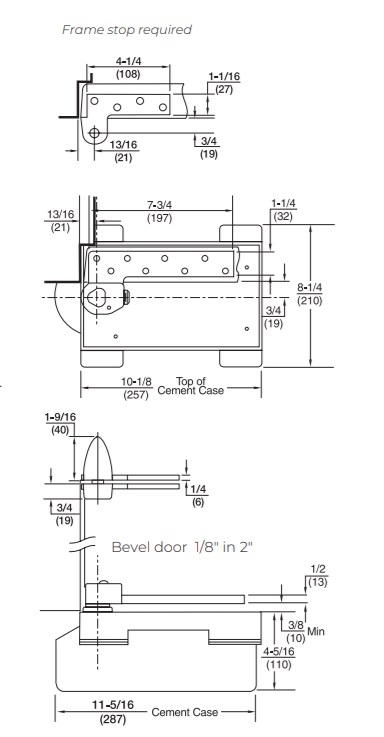

TECHNICAL INFORMATION
