PDQ Locks
PDQ 6200 Latch Cover | Chassis cover
SKU:
PDQ-629008-626
$55.00
Don't see the quantity, finish, or function you are looking for? We can mix, match and "BUILD" the item option set you are looking for - Just call us at 860-537-1328 and our sales staff will assist !
Description
6300 Exit Device Cross Reference And Product Selection Table
| Manufacturer | Rim | Rim Fire | Vertical Rod | Vertical Rod Fire | Concealed Vertical Rod | Concealed Vertical Rod Fire | Mortise | Mortise Fire |
|---|---|---|---|---|---|---|---|---|
| PDQ (Click on Link on right to view Exit Device) |
6300R | 6300RF | 6300V | 6300VF | 6300C | 6300CF | 6300M | 6300MF |
| CORBIN | ED5200 | ED5200A | ED5400 | ED5400A | ED5860 | ED5860B | ED5600 | ED5600A |
| DORMA | 9300 | F9300 | 9400 | F9400 | 9100 | F9100 | 9500 | F9500 |
| FALCON | 25-R | F-25-R | 25-V | F-25-V | 25-C | F-25-C | 25-M | F-25-M |
| HAGER | 4501 RIM | 4501 RIM FR | 4501 SVR | 4501 SVR FR | 4500 CVR | 4500 CVR FR | 4500 MOR | 4500 MOR FR |
| SARGENT | 8800 | 12-8800 | 8700 | 12-8700 | 8600 | 12-8600 | 8900 | 12-8900 |
| VON DUPRIN | 98/99 | 98/99-F | 98/9927 | 98/9927-F | 98/9947 | 98/9947-F | 98/9975 | 98/9975-F |
| YALE | 7100 | 7100F | 7110 | 7110F | 7160 | 7160F | 7130 | 7130F |
6400 Exit Device Cross Reference And Product Selection Table
| Manufacturer | Rim | Rim Fire | Vertical Rod | Vertical Rod Fire | Concealed Vertical Rod | Concealed Vertical Rod Fire |
|---|---|---|---|---|---|---|
|
PDQ |
6400R | 6400RF | 6400V | 6400VF | 6400C | 6400CF |
| CORBIN | ED4200 | ED4200MA | ED4400 | ED4400MA | ED4800 | ED4800MA |
| DORMA | 9700 | F9700 | 9800 | F9800 | 9600 | F9600 |
| FALCON | 24-R | F-24-R | 24-V | F-24-V | 24-C | F-24-C |
| HAGER | 4601 RIM | 4601 RIM FR | 4601 SVR | 4601 SVR FR | 4601 CVR | 4601 CVR FR |
| SARGENT | 8500 | 12-8500 | N/A | N/A | 8400 | 12-8400 |
| VON DUPRIN | 33A/35A | 33A/35A-F | 3327A/3527A | 3327A/3527A-F | 3347A/3547A | 3347A/3547A-F |
| YALE | 7200 | 7200F | 7210 | 7210F | 7220 | 7220F |
PDQ 6300, PDQ 6400 Exit Trim Product Selection Table
| Product Image | Product Name | Applicable Exit Devices | ||||||
|---|---|---|---|---|---|---|---|---|
| (Click On Link Below To View Product) | 6300 Panic Rim/ 6300 Fire Rated Rim | 6300 Panic SVR/ 6300 Fire Rated SVR | 6300 Panic CVR/ 6300 Fire Rated CVR | 6300 Panic Mortise/ 6300 Fire Rated Mortise | 6400 Panic Rim/ 6400 Fire Rated Rim | 6400 Panic SVR/ 6400 Fire Rated SVR | 6400 Panic CVR/ 6400 Fire Rated CVR | |
 |
6N Narrow Escutcheon | X | X | X | X | X | X | X |
 |
6W Wide Escutcheon | X | X | X | X | - | - | - |
 |
6T Thumblatch | X | X | - | X | X | X | - |
 |
6P Pull Plate | X | X | X | - | - | - | - |
 |
6G Grip Pull | X | X | X | X | X | X | X |
 |
6S Sectional (Rose) | X | X | X | - | - | - | - |

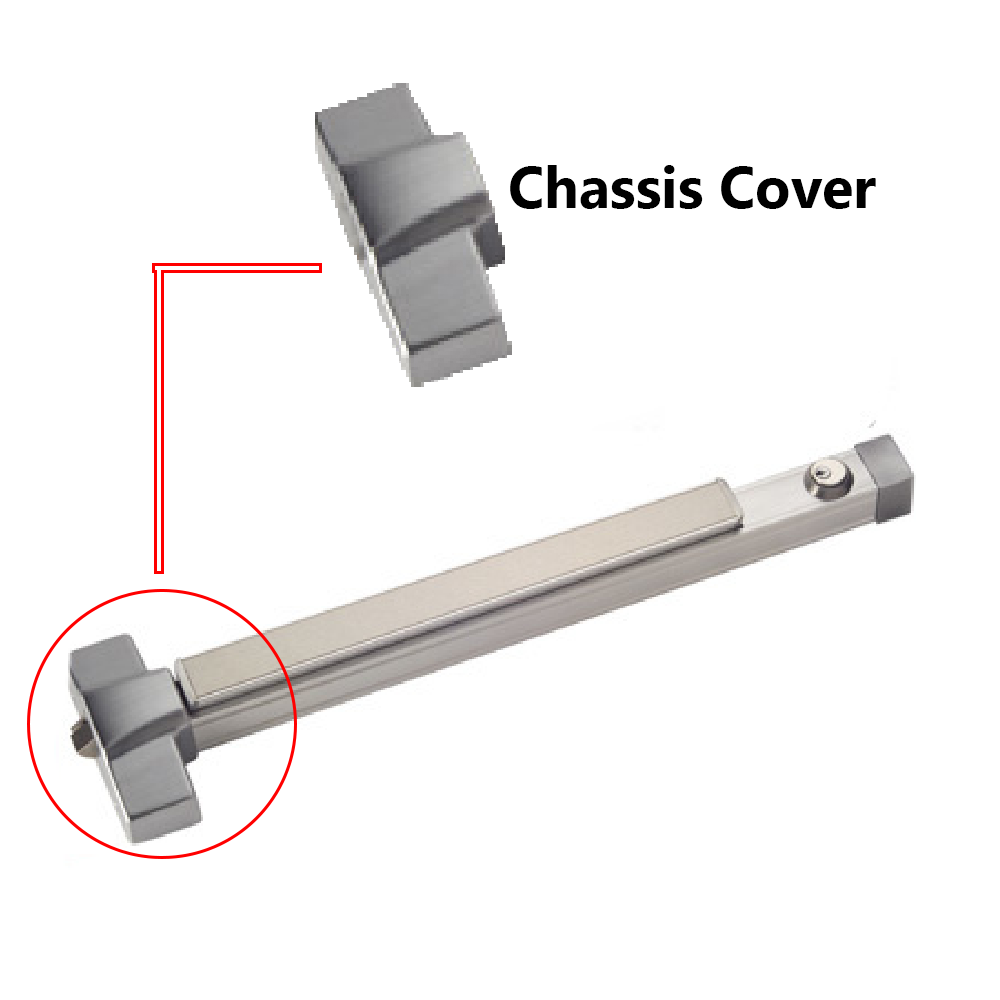

Cover for Latch Housing(chassis cover) (Pdq 6200)
1. 6200 Rim Wide Stile
2. 6202 Rim Narrow Stile
3. 6200 Surface Vertical Rod Wide Stile (SVR unavailable in narrow stile)
4. 6202 Concealed Vertical Rod Wide Stile
5. 6202 Concealed Vertical Rod Narrow Stile
6. 6200 Mortise Wide Stile Only (Narrow Stile unavailable)
FINISHES
Click Here For Our Definitive List of Hardware Finishes
