Securitron DK-12 Digital Keypad System

Securitron DK-12 Digital Keypad System

The DK-12 standalone keypad is ideal for lower security applications such as traffic control. Easy to install and to program, the one-piece DK-12 supports 99 user codes, including Passage mode and Lockout mode.

FEATURES

• Single gang, stainless steel plate with low voltage mounting ring

• 12-key illuminated 3x4 keypad

• True 10-digit operation (10 digits plus * and # keys)

• 99 user code capability

• Easy programming from the keypad

• Passage mode and Lockout mode

• Configurable audible keystroke echo

• Red, green and yellow LEDs for status and programming feedback

• Fail secure or fail safe-capable

• Easy to install with simple hand tools

• 5A SPDT timed, control relay output

• Request to exit (REX) input

• Primarily for indoor applications

• US32D/630 Satin Stainless Steel finish

Electrical

• 100 mA at 12 or 24 VDC 325 mA at 12 or 24 VAC

• Max 30 Volt input

• 5A SPDT Relay

Operating Temperature

• -10˚ to 140˚ F [-23˚ to 60˚ C]

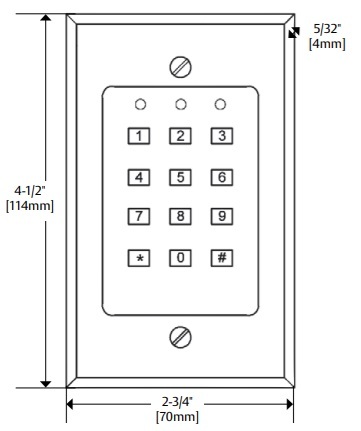

Securitron DK-12 Dimensions
