Securitron DK-16 Digital Keypad System

Securitron DK-16 Digital Keypad System

The DK-16 digital keypad system provides medium/high security control of electric locks in a one- or two-door application where both doors have the same control needs.

The tamper-resistant keypad provides true ten-key operation for use and programming. Encased in a separate enclosure for secure installation in a protected area, the controller offers REX input and relay output for lock control, alarm shunt or other interfaces.

FEATURES

• 12-key keypad with engraved and paint filled numbers

• Stainless steel plate

• Red, green and yellow LEDs for status and programming feedback

• Audible keystroke echo

• True 10-key operation (keys are not paired)

• 59 users with multiple entry codes

• User code and hard code disable feature

• Passage mode and Lockout mode

• Request to exit (REX) input

• 16 ft. [4.8m], 12 conductor, 22 gauge keypad cable

• US32D/630 Satin Stainless Steel finish

Electrical

• 12 VAC/VDC: 7 mA at rest; 160 mA active

• 24 VAC/VDC: 20 mA at rest; 190 mA active

Operating Temperature

• CPU: 32˚ to 158˚ F [0˚ to 70˚ C]

• Keypad: 32˚ to 110˚ F [0˚ to 43˚ C] Indoor use

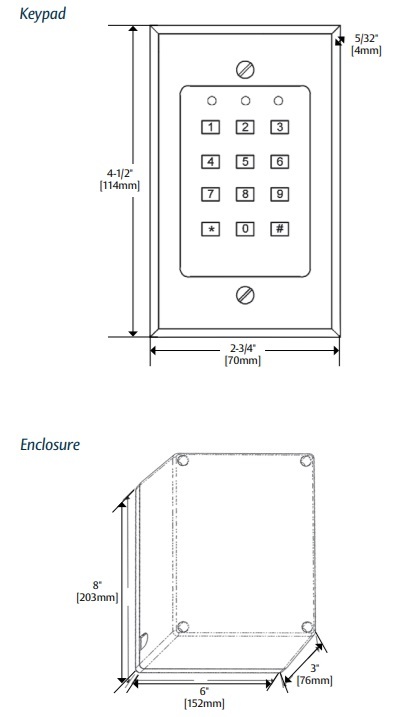

Securitron DK-16 Dimensions
