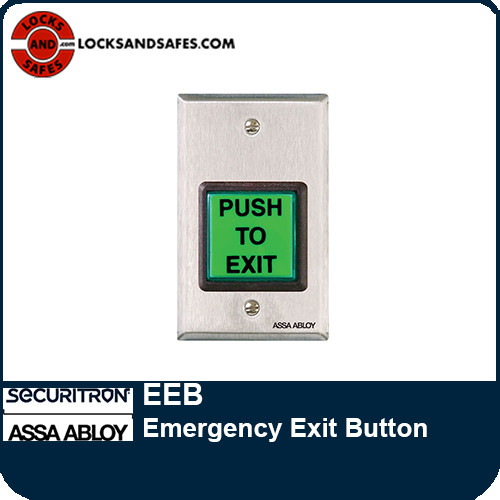

Securitron EEB Emergency Exit Button

Securitron EEB Emergency Exit Button

Install the EEB Emergency Exit Button next to the door to provide additional safety and redundancy as required by code when using a motion detector for a request to exit device.

NOTE: Securitron’s UL294 certification indicates that when the EEB is used with the XMS Motion Sensor, it meets the NFPA Life Safety Code 101 requirements for exit of access-controlled egress doors.

FEATURES

• Backup device in case of exit sensor failure per BOCA, NFPA, IBC, and VBC code

• Momentarily pressing the button releases the door for 30-seconds

• Re-triggerable for added 30-second release

• Interchangeable green and red lenses included standard

SPECIFICATIONS

Certifications (EEB2, EEB3N only)

• CSA-C22.2 No.205 Listed

• CSFM—California State Fire Marshal

Electrical

• 28 mA at 12 VDC

• 26 mA at 24 VDC

• 3A SPDT N/C Relay
