Securitron TSB Touch Sense Bar

Securitron TSB Touch Sense Bar

The TSB Touch Sense Bar provides touchtriggered release of electronically locked, non-fire-rated doors.

Touching the bar, even through light gloves or clothing, triggers an electronic sensor that releases the lock. For indoor use only, the TSB installs easily on all types of metal, aluminum or wood frame doors. Meets "no special tools or knowledge" criteria in code requirements.

Standard Features

• Can be field cut to accommodate non-standard openings up to 48" [1219mm]

• Activates a 2A DPST rated relay when touched (no mechanical movement) which will allow free egress, or initiates the delay on an exit delay timer

• Backup push button included

• 16 ft. [4.8m] 22 AWG 6 conductor cable and armored door cord included

• Available ElectroLynx® ready

Specifications

Certifications

• UL 294 Listed

• CSA-C22.2 No. 205 Listed

• CSFM—California State Fire Marshal Approved

• CE: EN 50091-1, EN 61000-6-2 Approved Electrical

• 50 mA at rest; 12 mA operating at 12 or 24 VDC

Environmental

• Operating Temperature: 32˚ to 110˚ F [0˚ to 43˚ C]

• Indoor use

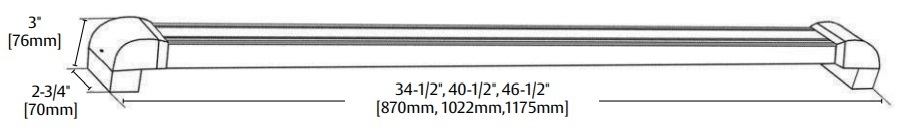

Securitron TSB Touch Sense Bar Dimensions
