Securitron XMS2 Request to Exit Motion Sensor

Securitron XMS2 Request to Exit Motion Sensor

The XMS2 passive infrared (PIR) motion sensor request to exit (REX) device reliably detects motion near a door and releases its lock.

Versatile mounting options and an easily adjustable infrared beam pattern provide optimal coverage of the egress area for smooth, hands-free lock release and exit.

SAFETY NOTE: Securitron recommends that an emergency exit button, such as the EEB, be used in conjunction with the XMS2 to meet applicable building codes and specific life safety issues.

FEATURES

Standard Features

• Passive infrared (PIR) request to exit (REX) device

• Automatically and reliably cuts power to the lock with no human intervention

• REX output

• Easily adjustable beam pattern

• Suitable for openings up to 12 ft in height

• Adjustable time relock

• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Specifications

Operation

• Indoor use only

Electrical

• 20 mA-50 mA (depending on switching status) at 12 or 24 VDC

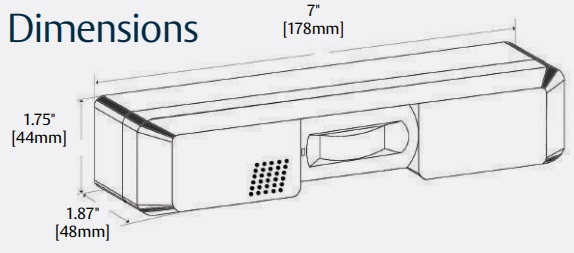

Securitron XMS2 Exit Motion Sensor Dimensions
