ADAMS RITE 74R1 ELECTRIC STRIKE - Electric Strike for Rim Exit Device with Pullman Type Latchbolts

DESCRIPTION

The Adams Rite 74R1 Electric Strike is designed for rim exit devices with 3/4" [19.1 mm] Pullman latchbolts. For use in aluminum, hollow metal or wood applications. Open electrically under 25 lbs [11.3 kg] of preload. Preload is pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes.

FUNCTION

These non-handed strikes feature an ultra-compact design and adjustable stainless steel keepers with over 1,500 lbs [680.4 kg] of holding force in fail secure mode. The strikes release electrically with up to 25 lbs of door preload. Single solenoid operates on 12/16/24 VDC power. Provides electrical remote control, allowing door to open without actuation of the exit device.

CERTIFICATIONS

The Adams Rite 74R1 is certified ANSI/BHMA A156.31 Electric Strike and Frame Mounted Actuators, Grade 1

FEATURES

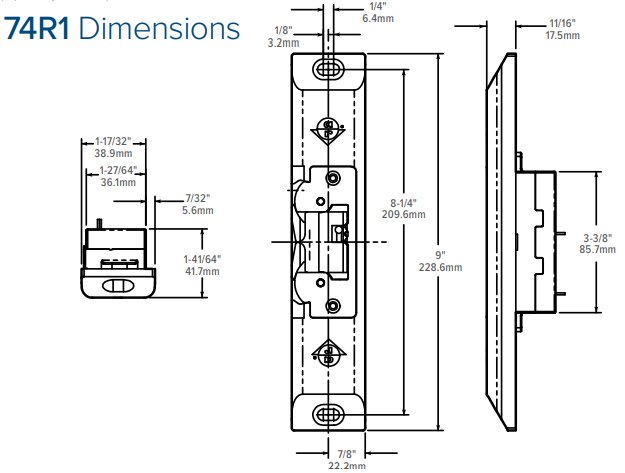

Case

1-13/32" x 3-3/8" x 1-1/16" deep

[35.7 mm x 85.7 mm x 27 mm deep]

Strike Opening

Bolt retaining keeper is stainless steel.

5/8" x 1-7/16" x 9/16" deep

[15.9 mm x 36.5 mm x 14.3 mm deep].

Strike accepts Pullman latch of exit devices without deadlocking bolts.

Faceplate

Not separate

1-3/4" x 9 x 11/16"

[44.5 mm x 228.6 mm x 17.5 mm]

Latchbolt Projection

3/4" [19.1 mm]

FINISHES

Click here for our Definitive List of Door Hardware Finishes

Standard Package

Individually boxed with mounting plate shims, mounting screws, and installation instructions.

Shipping Weight

2 lbs [0.91 kg].

Electrical

Voltage

Field selectable to match power source of 12/24 VDC. VA7400-16VDC voltage adapter required when using 16 VDC power, available separately. Equipped with a quick connect plug-in type connector.

Current Draw

.44A at 12 VDC

.46A at 16 VDC*

.23A at 24 VDC

*Requires 16 DC adapter (P/N VA7400-16VDC)

Fail Safe | Fail Secure

Field selectable fail safe/fail secure.

Options

• Available with two Form 'C' monitoring switches to indicate when the latchbolt is engaged in the strike jaws and a locked/unlocked solenoid status.

• ELX-ElectroLynx® Adapter Connects Adams Rite electrified products to ElectroLynx system

• 16 VDC Adapter VA7400-16VDC required when using 16 VDC power

DOCUMENTATION FILES

CLICK HERE FOR ADAMS RITE 74R1 ELECTRIC STRIKES CATALOG - PRICE LIST - PRODUCT SELECTION GUIDE

All measurements are approximate and are provided for informational purposes only. Refer to the product installation instruction.
