Yale RL Series Tubular Lock

Yale RL Series Tubular Lock

For applications that require beautiful modern aesthetics, ASSA ABLOY ACCENTRA® RL Series Tubular Locks are specially designed for use with the ASSA ABLOY ACCENTRA® Reflections® decorative lever collection. Engineered with the trusted quality of ASSA ABLOY ACCENTRA® and with ease of installation in mind, the RL Series exceeds the expectations of architects and design professionals in the interior applications of any hospitality, multi-family, and mixed-use facility.

FEATURES

• Available in 28 lever and 4 rose designs across 13 highquality architectural finishes

• Offered in a range of function options for any interior application, including passage, privacy, dummy trims and more

• ADA compliant for ease of accessibility

SPECIFICATIONS

Backset

2-3/4" (70mm) standard, 2-3/8" (60mm) optional

Door Thickness

Standard for doors 1-3/8" to 1-3/4" (35mm to 44mm). Optional 1-7/8" to 2" (48mm to 51mm).

Handing

Handed (Units can be field reversed)

Latchbolt

Brass with 1/2" (13mm) projection. 2-3/4" (70mm) backset standard,

Strike T-Strike 2-3/4" x 1-1/8" x 1-1/4" (70mm x 29mm x 32mm) lip to center supplied standard.

Door Prep

Conform to ANSI/SDI A250.14

UL/cUL

Available listed for use on fire doors up to and including 3 hours. (Suffix "F" to function number)

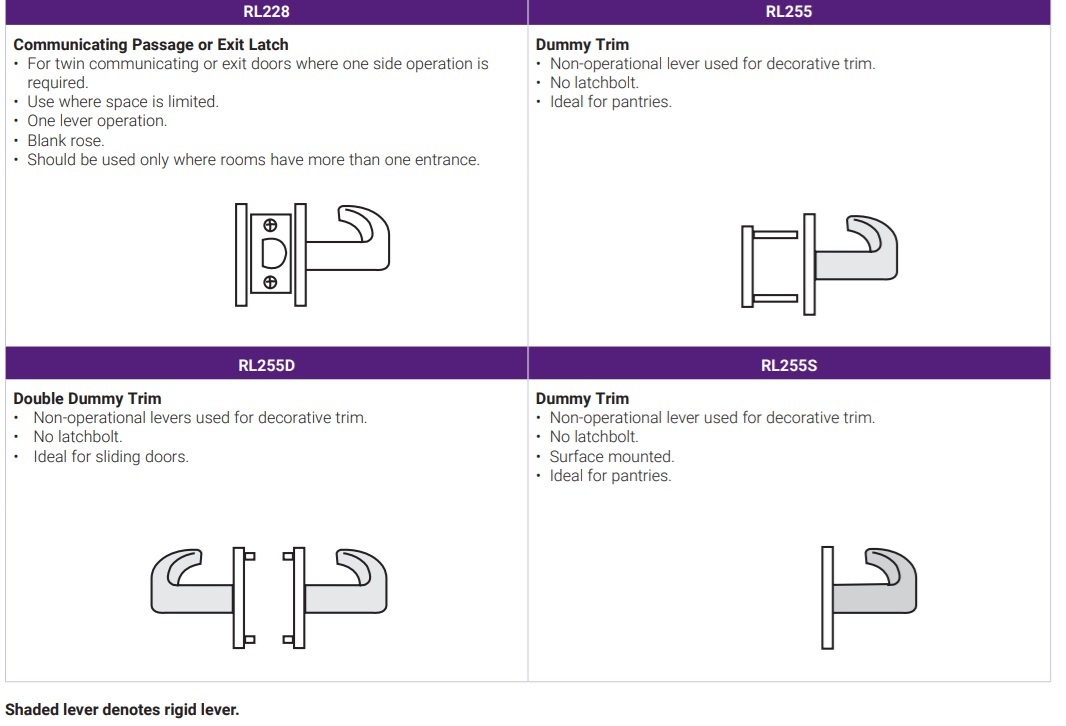

YALE RL SERIES TUBULAR LOCK FUNCTIONS

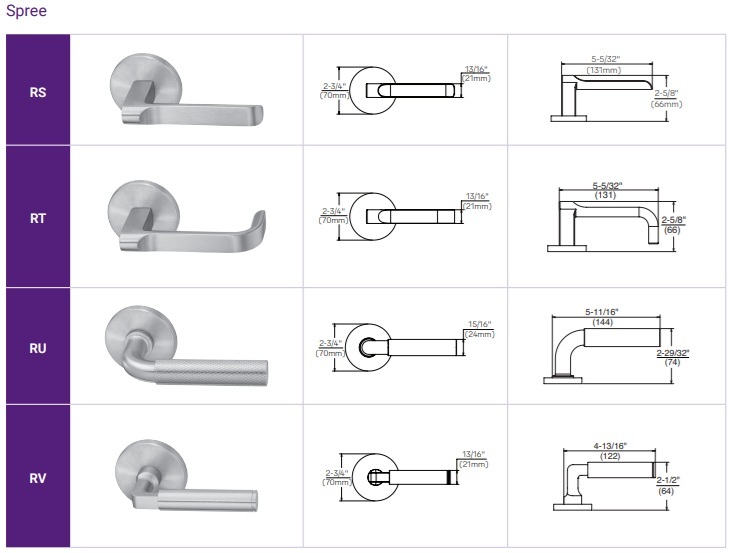

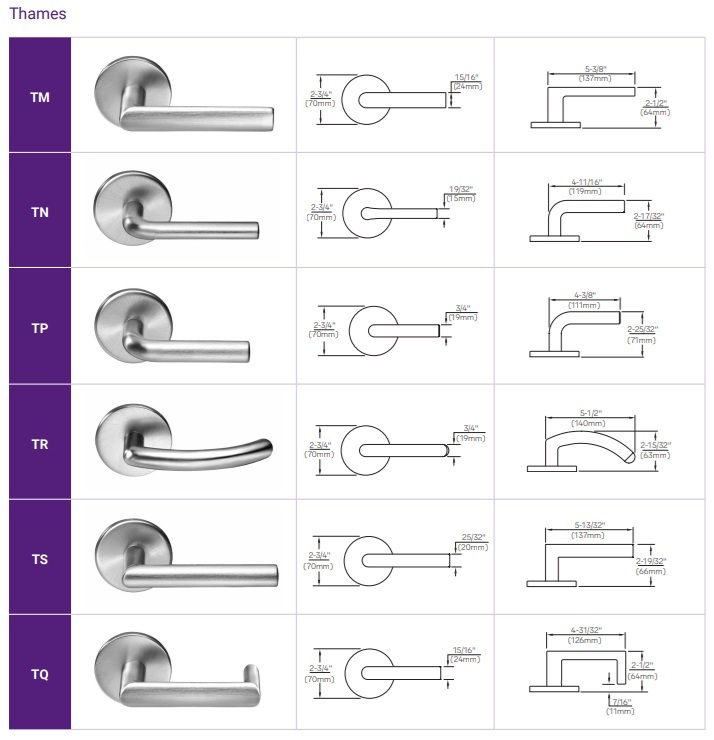

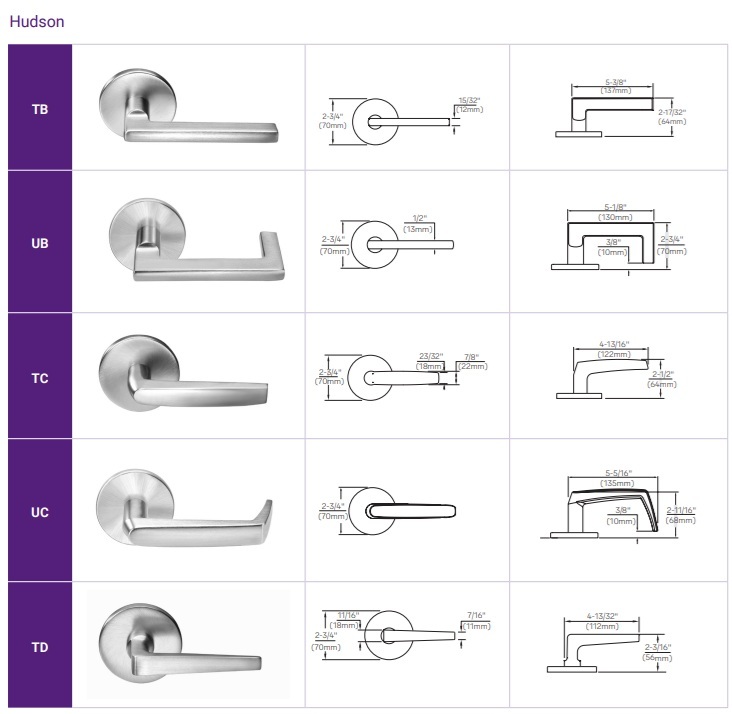

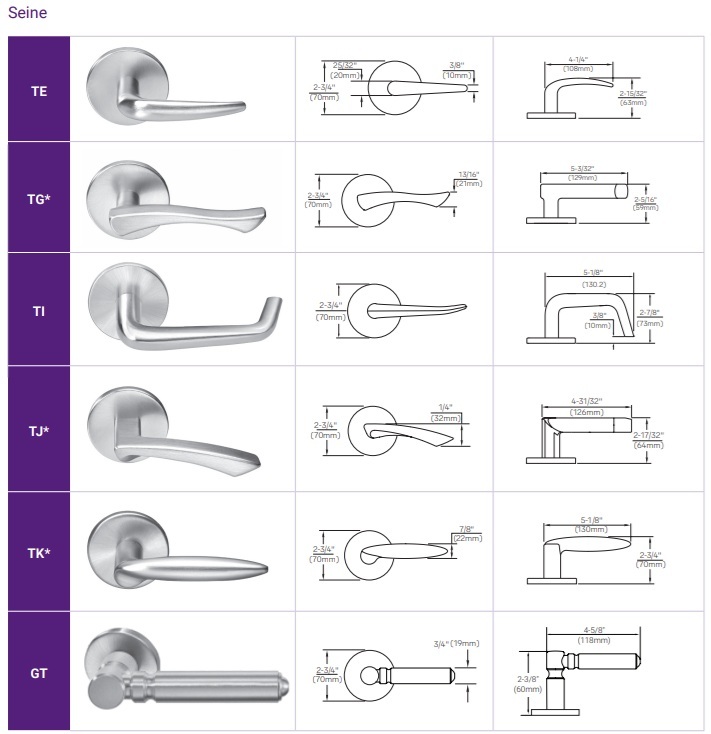

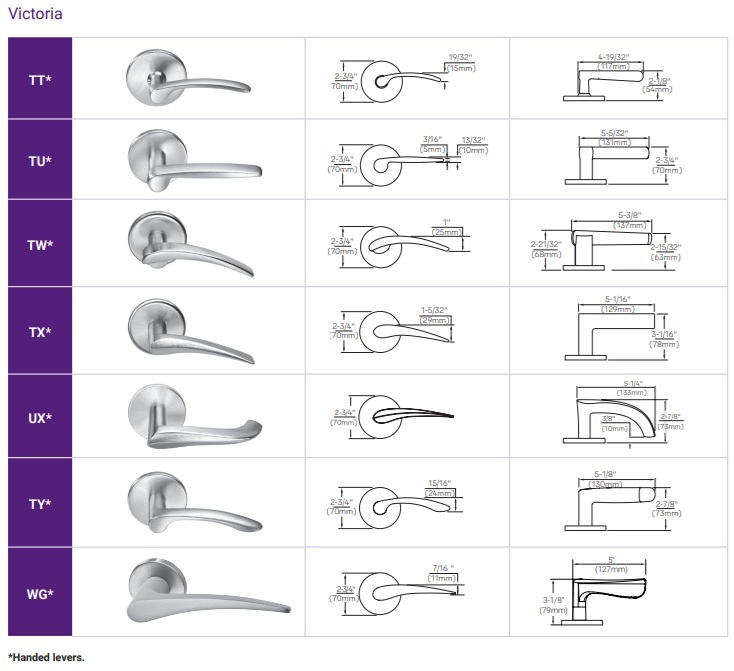

YALE LEVER STYLES
