DTX-2100 SINGLE DOOR STAND ALONE KEYPAD

The DTX-2100 keypad uses hardened backlit keys. DTX-2100 keypads are designed for both indoor and outdoor surface/flush mount applications. The electronics for keypad are conformal coated in order to provide excellent protection from the elements.

BENEFITS

• Affordable single-door security application in new or exisiting structures
• Dependable service and security in most environments
• Multi-user capabilities
• Flexible programming capable
• Easy installation
• Controls unauthorized access/ egress

FEATURES

• 500 users
• Single gang flush mount design
• Backlit hardened keys
• Polycarbonate trim
• Conformal coating
• Light/Medium Duty
• Key press feedback via sounder and yellow LED
• Built-in assignable sounder
• Bi-color Red/Green LED indicates relay status
• Indoor/outdoor use
• Keypad programmable
• DTX-4000 Hub Manager Compatible
• 3 year warranty
• UL 294 Listed
• Relay Contact Rating 2A @ 30VAC/DC (Main & Aux.)
• Door Position Inputs
• Request to Exit Input
• Alarm Shunt
• Temperature tolerance: -20F to 130F

Top

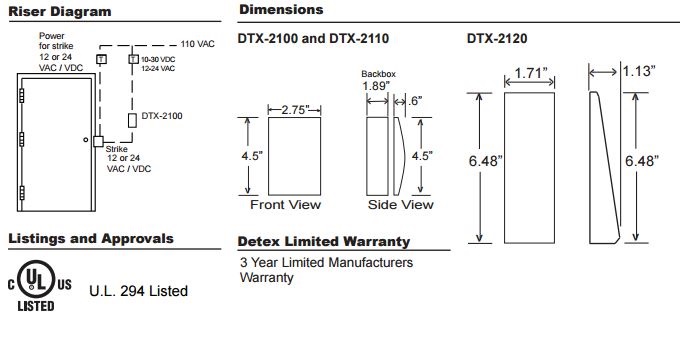

TECHNICAL INFORMATION

• 10-30 VDC; 12-24 VAC auto-adjusting
• 30 mA
• Power Supply 90-800
• Transformers - Hard Wired Detex P/N - PP-5152-2 (24 VAC) PP-5152-3 (12 VAC)
• Transformers - Plug In TFMR12 (12VDC)
• Electric strike or other locking device powered at 12 or 24 VAC up to 2 amps

Top

DOWNLOADS

DTX-2100 Catalog
DTX-2100 Installation Instruction
Listed Price
