Description

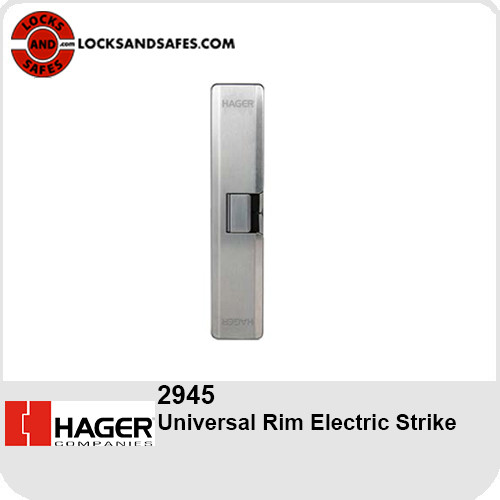

Hager 2945 Universal Rim Electric Strike
Interior & Exterior For use with rim exit devices
FEATURES
• Surface Mounting
• No Cut Prep
• 3/4” Pullman Latch Exit Devices
• Metal installation template included
MATERIAL
Heavy duty stainless steel
ELECTRICAL SPECIFICATIONS
- Voltage: 12/24V AC/DC
- Current Draw: 560 mA @ 12V, 280 mA @ 24V
- Sound: AC Buzz, DC Silent
- Duty: Continuous
CERTIFICATIONS
- Fire Rating: UL10C (3-hour)
- ANSI/BHMA: A156.31 Grade 1
- Burglary: UL1034
- Access Control: UL294
MECHANICAL SPECIFICATION
Dimensions: 1-7/8” (47.6 mm)W x 9-1/8” (231.8 mm)H x 3/4” (19.1 mm)D
