Hager 3100 Series Grade 1 Deadlocks

Hager 3100 Series Grade 1 Deadlocks

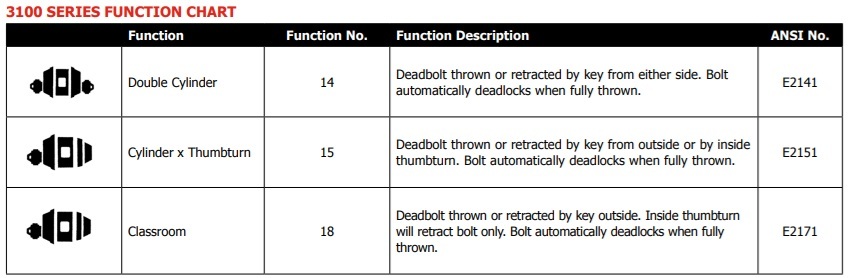

FUNCTIONS

FEATURES

• Non-handed

• Conventional cylinder or Small Format Interchangeable Core option available

CERTIFICATIONS

• BHMA Certified ANSI A156.36 Grade 1

• ANSI A250.13 Severe Windstorm Resistant Component

• UL/cUL Listed for all functions up to 3 hours for “A” label single doors

• UL10C Positive Pressure Rated

• ADA - Thumbturn

SPECIFICATIONS

Standard Door Prep

• Cylinder hole: 2-1/8” (54 mm) diameter (bore)

• Latch hole: 1” (25 mm) diameter (coss bore)

Exposed Trim: Wrought brass or bronze

Mechanism: Steel, zinc dichromate plating

Keys: Two operating keys supplied per lock

Backset:

• 2-3/4” (70 mm) - Standard

• 2-3/8” (60 mm) - Optionan

Latchbolt:

• 1” (25 mm) Throw - Brass with concealed hardened steel roller to prevent sawing or cutting

• 1-1/8” x 2-1/4” (29 mm x 57 mm) Square Corner Faceplate

Strikes:

• 3930 Square Corner, 1-1/8” x 2-3/4” (29 mm x 70 mm) with dustbox - Standard

• 3929 ASA Deadbolt Strike - Optional
