Select SL11 SD Standard Duty Concealed Geared Continous Hinges | Flush Mounted for 1-3/4" Doors



Select SL11 SD Standard Duty Concealed Geared Continous Hinges | Flush Mounted for 1-3/4" Doors

The Select SL11 SD Concealed Geared Continous Hinges for Flush mounted (no door inset), 1-3/4" thick doors. The Select SL11 SD is available in different lengths of 83", 85" and 95". The Select SL11 SD is also available in clear anodized aluminium, dark bronze anodized aluminium and black anodized aluminium colors.

Select Hinges are known to conform to high quality standards. So is the case with the Select SL11-HD hinges. The revolutionary SELECT geared continuous hinge puts an end to costly and irritating hinge failure problems, the most common cause of entrance failure.

Electrification options for Select SL11-SD are also available. Please contact us for more information.

Cross Reference - Roton 780-112, Pemko FMSLF/KFM, McKinney MCK12 hinges

Features

MATERIAL:

Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.

LENGTHS:

83", 85", 95" lengths standard for nominal door heights. Custom lengths are available. Please contact us.

LOAD/FREQUENCY RATINGS:

For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).

Standard Duty — The Select SL11-HD has been tested per BHMA standards for medium-frequency doors up to 200 lb. without frame or door reinforcement.

Heavy Duty — Tested per BHMA standards. Up to 200 lb. doors (high-frequency) and up to 400 lb. doors (medium-frequency) without frame or door reinforcement; up to 600 lb. doors (low-frequency) with the use of Rivnuts in the frame and door. Click here to view SL11 HD.

Heavy Duty (LL) — Our HD hinge with additional fastener holes for low-frequency doors up to 1,000 lb., including most lead-lined doors. Rivnuts are recommended in the frame and door on extremely tall, extremely heavy or wide doors. Click here to view SL11 LL.

FINISHES:

All SL11 hinges are stocked in Clear, Dark Bronze and Black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.

CLOSERS:

Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with SELECT hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

ORDER:

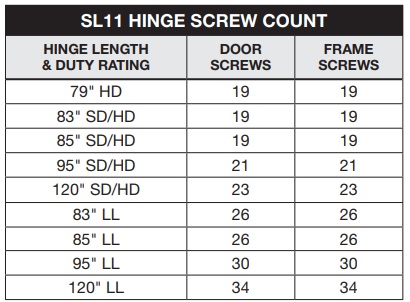

Specify length, finish and standard duty (SD), heavy duty (HD) or heavy duty with additional fastener holes (LL). Also, specify door and frame screw applications. 12-24 x 3/4" self-drilling, thread-forming 410SS Phillips undercut flathead screws are provided as a standard pack unless otherwise specified. Wood and thread-forming screws also available. Security screws optional at extra cost.

AVAILABLE ELECTRIC PREPS:

EPT, ATW, EMS, CTW4, CTW5, CTW8, CTW10, CTW12, CMG, AP and RP. For CTW12 prep, please consult us for engineering approval.

BHMA CERTIFICATION:

Select SL11 SD, Select SL11 HD and Select SL11 LL geared continuous hinges conform to BHMA Standard ANSI/BHMA A156.26-2006 Grade 1

Part Number Interchange
