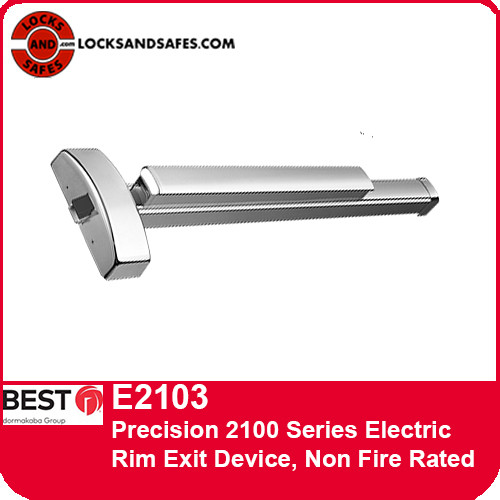

Best (Formerly Precision) E2103 | 2100 Series Grade 1 Electric Rim Exit Device, Non Fire Rated
No reviews yet
Write a Review
Write a Review
Precision
Best (Formerly Precision) E2103 | 2100 Series Grade 1 Electric Rim Exit Device, Non Fire Rated
SKU:
PRE-E2103
Shipping:
Calculated at Checkout
$2,109.24
Don't see the quantity, finish, or function you are looking for? We can mix, match and "BUILD" the item option set you are looking for - Just call us at 860-537-1328 and our sales staff will assist !
Description
Best (Formerly Precision) 2101 | 2100 Series Grade 1 Rim Exit Device, Non Fire Rated
The Electric Device controls entry by remote locking or unlocking of the outside trim. In addition to a 24 VDC solenoid, the exit device is also equipped with a SPDT - single pole double throw switch. The switch monitors the outside trim (locked or unlocked). The device is furnished standard as Fail Secure (FSE). When power is off the trim is locked. Power is applied to unlock the trim. May be field converted to the Fail Safe (FS) mode. (FS) - power is applied to lock the trim. Specify (FS) or (FSE) mode.
Electrical Ratings
Switch rated to 2 Amps at 24VDC SPDT
Solenoid current draw: 0.3 Amps.
SPECIFICATIONS
Doors
For all types of single and double doors with a mullion. Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide opening. For thicker doors, please contact us. Furnished standard for 1-3/4" thick, 3'-0" wide opening.
Device
Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
Base Material
The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
Chassis
Investment Cast Steel, Zinc Dichromated.
Latchbolt
Stainless Steel, Deadlocking, 3/4" throw.
Strikes
No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard.
No. S988, optional strike for use on Aluminum Door applications, please contact us.
No. S458, optional strike for use on Mullion applications, please contact us.
Dogging
1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.
Touchbar Height
39-15/16" from floor standard. May be varied as situation dictates.
Reversible
Reversible for all functions and Trims. Standard packaging RHRB.
UL Listed
Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.
ANSI/BHMA
Devices are BHMA certified for ANSI 156.3, Grade 1.
Additional Information
- Option:Choose Handing (What is Handing? Click link here to know more about Handing):
- https://blog.locksandsafes.com/2020/07/28/door-hardware-handing-guide/
