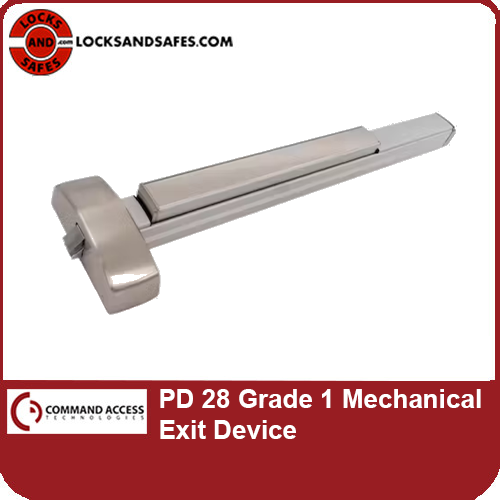

Command Access PD28 Grade 1 Mechanical Exit Device | Von Duprin 98/99 Retrofit

Command Access PD28 Motorized Exit Device

The Command Access PD28 series is our wide stile Grade 1 architectural exit devices. It is equipped with our motorized latch retraction allowing for it to be integrated into your access control or handicap access system. The PD28 is used on institutions and commercial buildings when heavy-duty, fire, and life safety operation is required. All MLR models come equipped with our PTS “push to set” technology or pair the PD28 with electrified ET27 trim perfect for stairwell conditions where “Fail Safe” is required to meet code. It carries our 3-Year “No-Hassle“ Warranty, meaning we support you.

• WIDE STILE GRADE 1 EXIT DEVICE
• ELECTRIFIED OPTIONS - MOTORIZED LATCH RETRACTION OR MOTORIZED TRIM LEVER CONTROL
• UL/ULC LISTED: LISTING FOR PANIC EXIT HARDWARE AND 3 HOUR RATING FOR FIRE EXIT HARDWARE
• ANSI/BHMA CERTIFIED: DEVICES ARE A156.3 GRADE 1.

FEATURES

• Rugged, reliable, flexible, and simple design
• Patent Pending
• Quiet operation - large heavy-duty spring cushion quiets both the compression/extension of the push bar
• Internal compression spring ensures long lasting push bar return
• Engineered strong and overbuilt for the most demanding environments
• Durable, heavy-duty flush end cap is standard and resist prying
• Stands up to cart abuse, heavy-duty flush end cap and tapered pushbar designed to deflect hits and minimize damage
• Simple field door prep and installation
• Dogging holds bar in a retracted position nearly flush with head cover and rail
• Hex Key provided to lock and unlock the device
• No exposed screws on back of bar
• True 2-3/4” backset (with 5/8” frame stop and 1/8” door gap)
• Wood and machine screws included with each device
• Devices and trim are non-handed
• Designed & Assembled in the USA

SPECIFICATIONS

Device Lengths: (36”) or (48”)
Minimum Stile Width: PD27 - 3-1/2”
Door Thickness: 1-3/4“ -2” (Consult factory for other)
Latch Bolt: Pullman Latch - Stainless steel dead locking with 3/4” throw
Strikes: 801 (Panic), 802 (Fire)

CERTIFICATION

• Listed for UL 305 “Panic”, listed for UL 10C “Fire Exit Hardware” up to 3 hours.
• Certified to ANSI/BHMA A156.3 Grade 1
• Approved for Florida HVHZ (High Velocity Hurricane Zone). +60/65
• FL #40297 +60/-65 psf 4080 16ga Single
• FL #40297 +50/-50 psf 4080 18ga Single
• Meets requirements of the Buy American Act
• Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
