Hager
Hager 4700 Series Escutcheon Trim For 4700 Series Exit Devices
No reviews yet
Write a Review
Write a Review
Hager
Hager 4700 Series Escutcheon Trim For 4700 Series Exit Devices
SKU:
HAG-4700-ESC-TRIM
Shipping:
Calculated at Checkout
$231.98
Don't see the quantity, finish, or function you are looking for? We can mix, match and "BUILD" the item option set you are looking for - Just call us at 860-537-1328 and our sales staff will assist !
Description
Hager 4700 Series Escutcheon Trim For 4700 Series Exit Devices
SPECIFICATIONS
Escutcheon: 1-11/16” x 7-7/8” (43 mm x 200 mm)
Handing: Specify when ordering
Door Thickness: For doors thicker than 1-3/4” or when used with a shim kit, must specify total door thickness

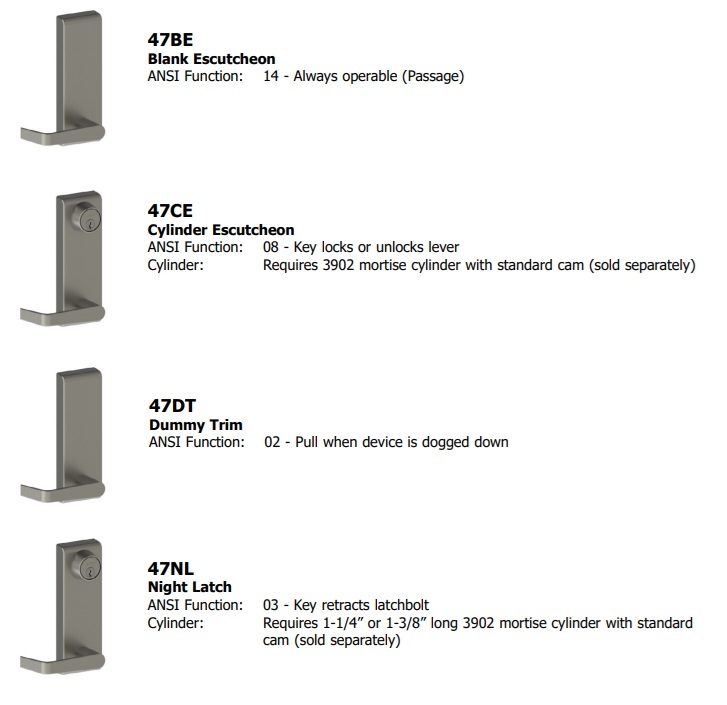

FUNCTIONS

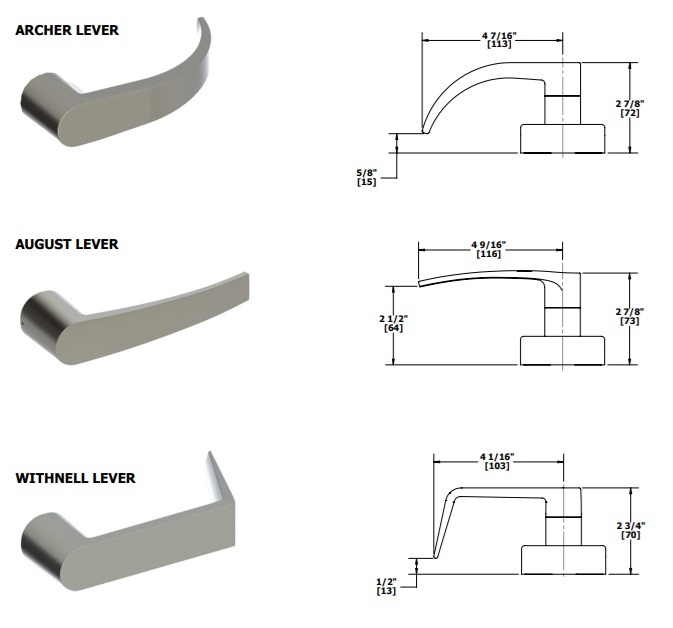

Hager 4700 Escutcheon Trim Lever Options
Additional Information
- Option:Choose Handing (What is Handing? Click link here to know more about Handing):
- https://blog.locksandsafes.com/2020/07/28/door-hardware-handing-guide/
