Hager 4701 SVR | Hager 4700 Series Grade 1 Surface Vertical Rod Exit Device, Non Fire Rated

Hager 4701 SVR | Hager 4700 Series Grade 1 Surface Vertical Rod Exit Device, Non Fire Rated

FEATURES

Covers: Cast brass, bronze, stainless steel, zinc

Cover Tube: Painted steel, plated steel, stainless steel

Dogging: Hex dogging feature standard on non-fire labeled doors

End Caps: Painted steel, plated steel, stainless steel

Fasteners:

• Wood and machine screws

• Thru-bolts supplied standard

Latchbolt:

• Top - 3/8” (9 mm) throw with automatic dead-latching, stainless steel

• Bottom - 3/8” (9 mm) throw held retracted during door swing, stainless steel

Strikes:

• Stainless steel with stainless steel pin and roller - included standard with panic and fire-rated devices

• Surface applied to frame with slotted holes for easy adjustment

• Optional double door strike for use with surface vertical rod and rim devices

• Optional threshold strike for use with saddle threshold

SPECIFICATIONS

Door Thickness: 1-3/4” (44 mm) - Standard

Door Width:

• 36’’ (914 mm) field sizeable to 30’’ (762 mm) door

• 48’’ (1219 mm) field sizeable to 36’’ (914 mm) door

Projection:

• 2-7/16” (62 mm) in undogged position

• 1-3/16” (30 mm) in dogged position

Vertical Rods:

• Rods for 7’ (2134 mm) doors - 35-1/4” (895 mm) top rod length

• Rods for 8’ (2438 mm) doors - 47-1/4” (1200 mm) top rod length

• Extension rod kits available, 2’ (610 mm) or 3’ (914 mm) for doors over 7’

Stile Width:

• 4-1/2” (114 mm) - minimum stile width required for single door and 5/8” (16 mm) stop

• 4” (102 mm) - minimum stile width required for double doors

• 4-1/2” (114 mm) - minimum stile width required for double door x Rim device with double door strike

• All stile widths are measured from door edge

Notes:

• Escutcheon and thumbpiece pull plate trim is handed

• Apollo knob is not ADA compliant

• Recommended for use on appropriately reinforced doors

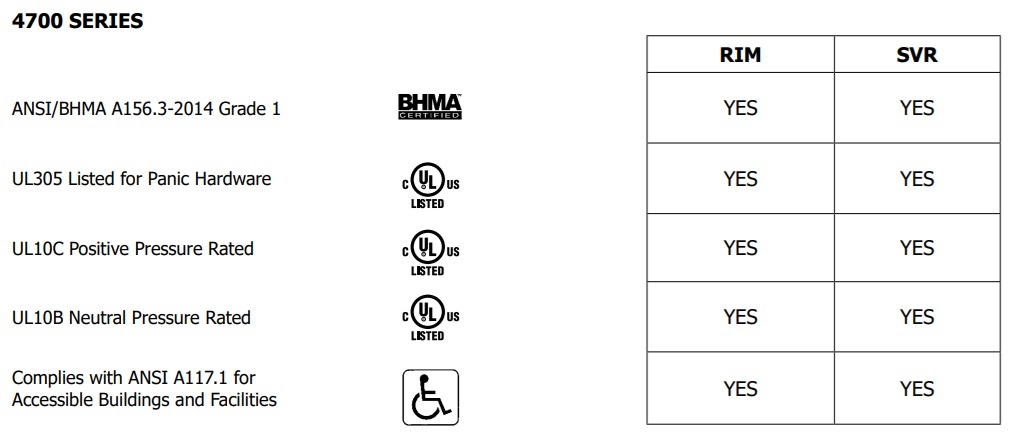

Hager 4700 Non Fire Rated Compliance and Certifications

Hager 4700 Exit Device Profile
