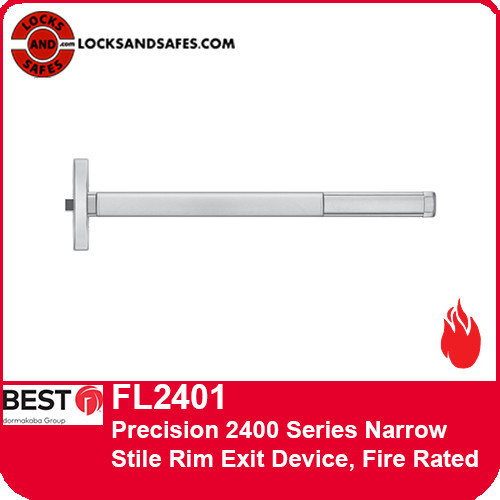

Best (Formerly Precision) FL2401 | 2400 Series Grade 1 Narrow Stile Rim Exit Device, Fire Rated
SPECIFICATIONS
Doors
For all types of single and double doors with a mullion. Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide opening. For thicker doors, consult us. Furnished standard for 1-3/4" thick, 3'-0" wide opening.
Base Material
The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. US28 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
Chassis
Investment Cast Steel, Zinc Dichromated.
Touchbar Height
39-15/16" from floor standard. May be varied as situation dictates.
ANSI/BHMA
Devices are BHMA certified for ANSI 156.3, Grade 1.
Case
Wrought Steel, Zinc Dichromate finish.
Latchbolt
Stainless Steel, Deadlocking, 3/4" throw.
Strikes
No. S988, standard package for Aluminum Door applications, Black Powder Coated Stainless Steel Roller Strike.
