The Precision Series Crossbar Style Exit Devices provide a traditional aesthetic architectural appeal with proven durability. All Precision Series Exit Devices are UL listed for panic and fire and are certified to ANSI/BHMA Grade 1. The Precision Series is available in a variety of finishes and its chassis is constructed from investment cast steel.

FEATURES

Doors – For all types of single and double doors with a mullion. For mullions, contact us. Available for 1-3/4" to 2-1/4" thick, up to 4'–0" wide opening. For thicker doors, consult us. Furnished standard for 1-3/4" thick, 3'-0" wide opening.

Device – Covers ANSI A115.1 (Type 86) Mortise Lock preparation

Covers – Lock Stile and Hinge Stile Assembly, Cold drawn Bronze, Brass, Stainless Steel.

Chassis – Lock Stile and Hinge Stile Assembly, Investment Cast Steel, Zinc Dichromated.

Arms – Forged Brass or Bronze.

Crossbar – 1 Bronze, Brass or Stainless Steel tubing furnished standard for a 3'-0" Door. For wider doors, specify door width. Knurled and Reinforced crossbars are available.

Dogging – Hex Key dogging standard for Panic Hardware. NOT available on Fire Exit Hardware.

Handed – Specify hand when ordering as RHRB or LHRB. Standard packaging is RHRB.

ANSI/BHMA – Devices are BHMA certified for ANSI 156.3, Grade 1.

Cylinders – Mortise type, not furnished standard.

Crossbar Height – 34-5/8" to centerline from finish floor standard. May be varied as situation dictates, consult factory.

Mortise Lock - Handed Fits doors machined per ANSI A115.1 for Federal Lock Type 86.

Backset – 2-3/4".

Case – Wrought Steel, Zinc Dichromate finish.

Lock Front Plate – 8" x 1-1/4" Bronze, Brass or Stainless Steel, pivots for beveled or square edged doors.

Latchbolt – Stainless Steel, Deadlocking, 3/4" throw, anti-friction.

Guardbolt – Stainless Steel, sliding type.

Strikes – No. S982 handed curved lip strike standard.

UL Listed – Panic and Fire Exit Hardware. For FIRE EXIT HARDWARE Ratings see below. Conforms to UL10C and UBC 7-2.

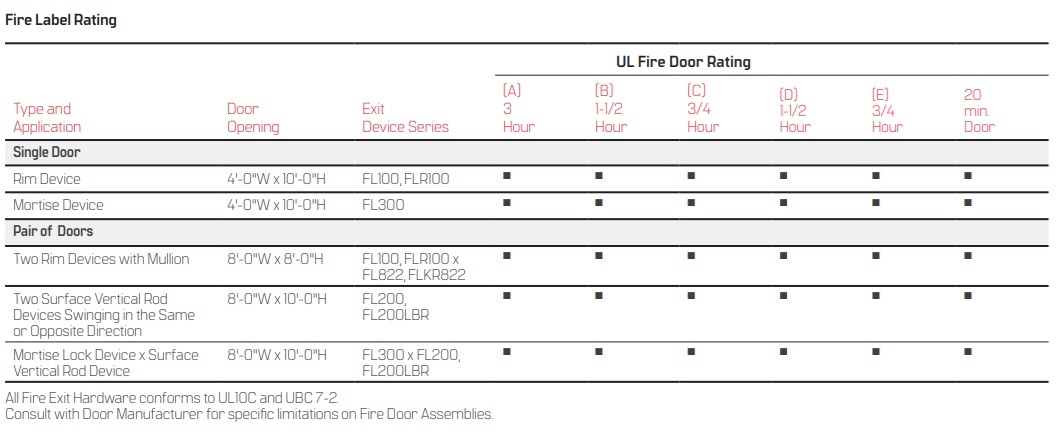

Precision 100-200-300 Fire Label Rating

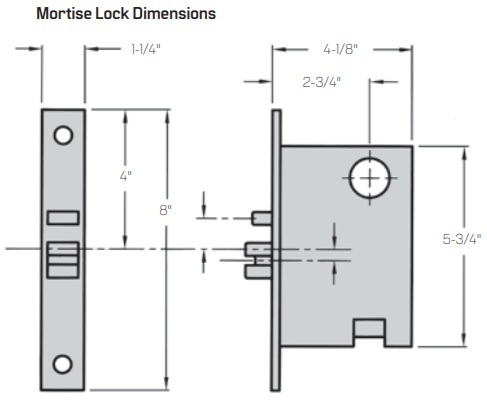

Precision Mortise Lock Dimensions
