Sargent
Sargent 12-8810 | 80 Series Grade 1 Fire Rated Rim Exit Device
No reviews yet
Write a Review
Write a Review
Sargent
Sargent 12-8810 | 80 Series Grade 1 Fire Rated Rim Exit Device
SKU:
SAR-12-8810
Shipping:
Calculated at Checkout
$1,758.23
Don't see the quantity, finish, or function you are looking for? We can mix, match and "BUILD" the item option set you are looking for - Just call us at 860-537-1328 and our sales staff will assist !
Description
Sargent 12-8810 | 80 Series Grade 1 Fire Rated Rim Exit Device
Features
• ANSI/BHMA A156.3 - Grade 1
• UL10C (Fire) Listed
• Designed for standard width stile applications on wood and metal doors
• Single and double door applications with a mullion
Specifications
Door Type
Wood or metal Doors
Door Thickness
1-3/4" (44mm) minimum thickness. For doors over 1-3/4" to 2-1/4" thick, contact us
Stile
4-1/2" (114mm) minimum stile width
Mounting
Supplied standard with wood and machine screws Available with through-bolts and mortise nuts
Chassis Cover
Cold drawn stainless steel, brass or bronze with ANSI/BHMA Finishes
Chassis
Nonferrous alloy (Panic) Ferrous alloy (Fire Rated)
Rails
Roll Formed Stainless Steel, Brass or Bronze with ANSI/BHMA Finishes
Hand
Non-handed
Latchbolt
Stainless steel, 3/4" (19mm) throw

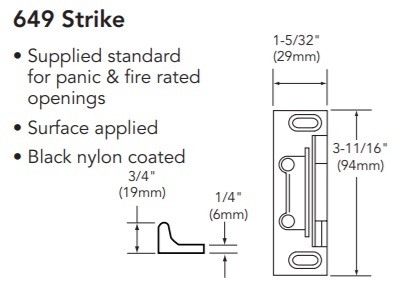

Strike
649 Strike supplied standard for panic & fire rated openings
Additional Information
- Option:Choose Handing (What Is It? Click Link Here To See Our Door Handing Guide):
- https://blog.locksandsafes.com/2020/07/28/door-hardware-handing-guide/
