Sargent 8310 | 80 Series Grade 1 Narrow Stile Mortise Exit Device

Sargent 8310 | 80 Series Grade 1 Narrow Stile Mortise Exit Device

Features

• Designed for standard width stiles with a narrow design look

• Through-bolted trim for quiet operation and security

• Single door applications

• Double door applications with Mortise Lock x Vertical Rod Device

• UL10C (Fire) and UL305 (Panic) listed

• Devices are ANSI/BHMA A156.3 - Grade 1

Specifications

Door Type

Wood or metal doors

Door Thickness

1-3/4" (44mm) minimum thickness. For doors over 1-3/4" to 2-1/4" thick, specify thickness and order as 31-

Stile

4-1/2" (114mm) minimum stile width

Rail sizes as determined by door width

Rails are available in 4 sizes, use door width to determine size needed.

Rails will be factory cut to size, if door width is supplied

• E Rail for 24" to 32" door widths, No cutting required for 32" door

• F Rail for 33" to 36" door widths, No cutting required for 36" door

• J Rail for 37" to 42" door widths, No cutting required for 42" door

• G Rail for 43" to 48" door widths, No cutting required for 48" door

Strike

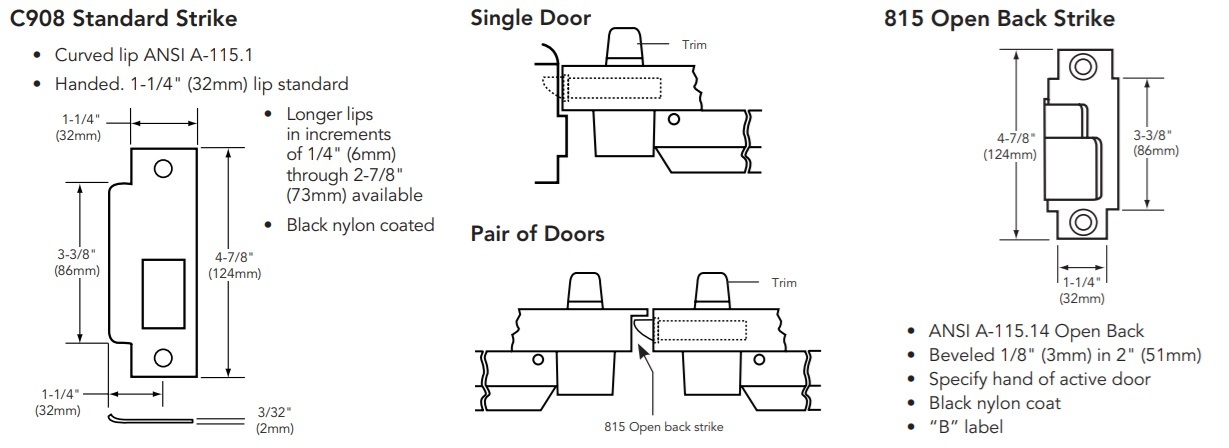

C908 Standard Black Nylon Coated – ANSI Prep A115.1

Optional Strikes – 815 Open Back Strike or 908 Flat Lipped Strike with Black Nylon. Please contact us.

Dogging Feature

Hex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)

Mounting Fasteners

Supplied standard with wood and machine screws Available with through-bolts and mortise(sex) nuts

Latch Bolt

Brass Nickel Plated, 3/4" (19mm) throw, anti-friction

Guarded/Deadlatch

Brass, sliding type

Device Centerline from Finished Floor

41" (1041 mm) for Standard Applications

Center Case Dimensions

8-5/16" (211mm) x 1-1/16" (27mm)

Projection

Pushbar Neutral – 3" (76mm)

Pushbar Depressed – 2-1/8" (54mm)
