Sargent FM8710 | 80 Series Grade 1 Fire and Windstorm (Hurricane) Rated Wide Stile Surface Vertical Rod Exit Device

Sargent FM8710 | 80 Series Grade 1 Fire and Windstorm (Hurricane) Rated Wide Stile Surface Vertical Rod Exit Device

Features

• 2-point latching exit device

• UL Listed in compliance with ICC 500 (2014/2020) and FEMA P-361 (2015)

• Specially machined rail and internal components make the FM8700 sturdier and more robust than standard products

• Devices are ANSI/BHMA A156.3 - Grade 1

• UL10C (Fire) Listed

Specifications

Doors and Frames

CECO DOOR and CURRIES StormPro® Series Door Assemblies

- 6'0" x 6'8" to 8'-0" x 8'-0" for pairs of fire rated doors

- 3'0" x 6'8" to 4'-0" x 8'-0" for single fire rated doors (Requires 4 Thermal Pins)

Hardware

SARGENT FM8700 or 12-FM8700 Exit Device on both leaves or single door applications

Hinges

McKinney SP3386/SP3786 StormPro® Tornado Resistant Butt Hinges

McKinney MCK-HG305 Continuous Hinges

Markar HG305 Continuous Hinges

Strikes

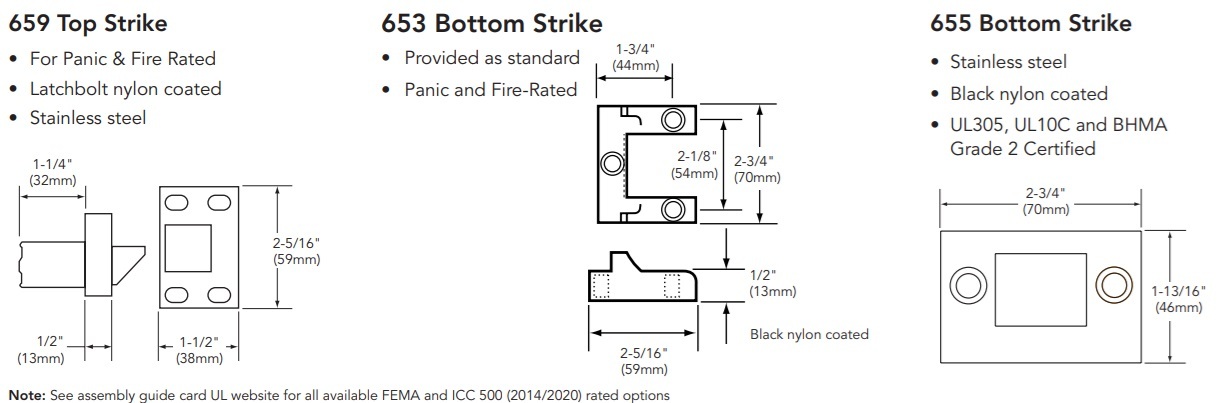

659 Top Strike in frame and 653 Bottom Strike furnished standard 655 Bottom Strike optional

Shim Kit

569 Shim Kit furnished standard

Rail sizes as determined by door width

Rails are available in 3 sizes, use door width to determine size needed. Rails will be factory cut to size, if door width is supplied

• F Rail for 36" door width

• J Rail for 37" to 42" door widths, No cutting required for 42" door

• G Rail for 43" to 48" door widths, No cutting required for 48" door

Electric Options

54- Outside Lever Monitoring Option

Mounting Fasteners

Supplied standard with machine screws and with throughbolts for the latch cases

Top & Bottom Bolt

Stainless steel

Device Centerline from Finished Floor

41" (1041mm) for Standard Applications

38" (965mm) for elementary schools

Center Case Dimensions

8-3/8" (213mm) x 2-5/8" (67mm)

Projection

Pushbar Neutral – 3" (76mm)

Pushbar Depressed – 2-1/8" (54mm)
