Features

• Single point top latching

• Top latchbolt projection adjustable through center case

• ANSI/BHMA A156.3 - Grade 1

• UL10C (Fire) and UL305 (Panic) Listed

• Tripping potential removed - no bottom strike

• Rods are 1/2" (13mm) brass, bronze or stainless steel

Specifications

Door Type

Wood or metal doors

Door Thickness

1-3/4" (44mm) minimum thickness.

For doors over 1-3/4" to 5" thick, please contact us

Stile

4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim

Rail sizes as determined by door width

Rails are available in 4 sizes, use door width to determine size needed. Rails will be factory cut to size, if door width is supplied

• E Rail for 24" to 32" door widths, No cutting required for 32" door

• F Rail for 33" to 36" door widths, No cutting required for 36" door

• J Rail for 37" to 42" door widths, No cutting required for 42" door

• G Rail for 43" to 48" door widths, No cutting required for 48" door

Strike

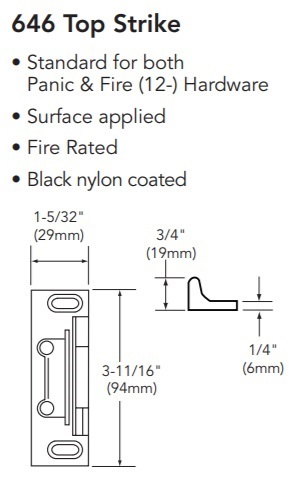

646 Top Strike (Panic and Fire Rated)

Dogging Feature

Hex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)

Mounting Fasteners

Supplied standard with wood and machine screws Available with through-bolts and mortise (sex) nuts

Top Bolt

Stainless steel

Device Centerline from Finished Floor

41" (1041mm) for Standard Applications

Door/Opening Height

Must be specified - 120" (3048mm) Max Door Opening

Center Case Dimensions

8-3/8" (213mm) x 2-5/8" (67mm)

Projection

Pushbar Neutral – 3" (76 mm)

Pushbar Depressed – 2-1/8" (54 mm)
