Hager
Hager 4500 Series Escutcheon Trim For 4500 Series Rim and Vertical Rod Exit Devices
No reviews yet
Write a Review
Write a Review
Hager
Hager 4500 Series Escutcheon Trim For 4500 Series Rim and Vertical Rod Exit Devices
SKU:
HAG-4500-ESC-TRIM
Shipping:
Calculated at Checkout
$607.87
Don't see the quantity, finish, or function you are looking for? We can mix, match and "BUILD" the item option set you are looking for - Just call us at 860-537-1328 and our sales staff will assist !
Description
Hager 4500 Series Escutcheon Trim For 4500 Series Rim and Vertical Rod Exit Devices
SPECIFICATIONS
Escutcheon: 2-7/8” x 10-3/4” (73 mm x 273 mm)
Notes:
• Cannot be used with 4500 Series Mortise exit device
• 45BE, 45CE, 45DT, 45NL trim does not match centerline of 4500 Series Mortise trim (45MB, 45MC, 45MD and 45MN)
FUNCTIONS

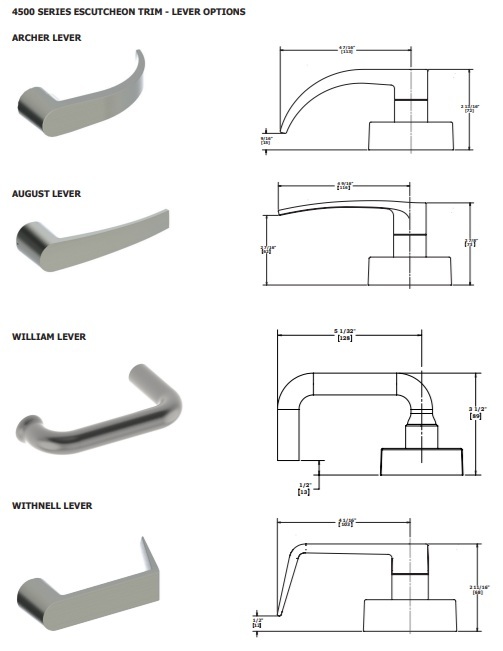

Hager 4500 Escutcheon Trim Lever Options
Additional Information
- Option:Choose Handing (What is Handing? Click link here to know more about Handing):
- https://blog.locksandsafes.com/2020/07/28/door-hardware-handing-guide/
