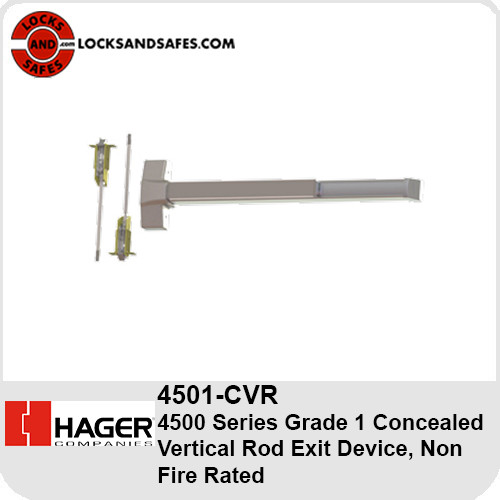

Hager 4501 CVR | Hager 4500 Series Grade 1 Concealed Vertical Rod Exit Device For Wood and Metal Doors, Non Fire Rated

Hager 4501 CVR | Hager 4500 Series Grade 1 Concealed Vertical Rod Exit Device For Wood and Metal Doors, Non Fire Rated

FEATURES

Covers

Stainless steel, zinc

Cover Tube

Aluminum

Dogging

• Hex key dogging standard on panic-rated devices

• Less dogging available on panic-rated devices, specify LD

• Cylinder dogging is available on panic-rated devices, specify CD (3902 mortise cylinder with standard cam sold separately. Cylinder Length of 1-1/8” (29mm) - 1-3/8” (35mm) is required.)

End Cap

Flush (Zinc)

Fasteners

• Wood and machine screws

• Thru-bolts supplied standard

Latchbolt

• Top - 1/2” (13 mm) throw, pullman type with automatic dead-latching, stainless steel

• Bottom - 1/2” (13 mm) throw, pullman type, held retracted during door swing, stainless steel

Strikes

• Stainless steel with stainless steel pin and rollers - included standard with panic device

• Solid stainless steel - included standard with fire-rated device

• Top strike mortised into frame

• Double door strike for use with CVR and RIM device available

SPECIFICATIONS

Door Thickness

1-3/4” (44 mm) - Standard

Door Width

• 36’’ (914 mm) field sizeable to 30’’ (762 mm) panic-rated door and 28” (711 mm) fire-rated door

• 48’’ (1219 mm) field sizeable to 36’’ (914 mm) panic- or fire-rated door

Projection

• 3” (76 mm) in undogged position

• 2-5/8” (67 mm) in dogged position

Vertical Rods

• Rods for 7’ (2134 mm) doors - 34-5/8” (879 mm) top rod length

• Rods for 8’ (2438 mm) and 10’ (3048 mm) doors - 46-5/8” (1184 mm) top rod length

• Extension rod kits available, 2’ (610 mm) or 3’ (914 mm) for doors over 7’

Stile Width

• 4” (102 mm) minimum stile width required

• All stile widths are measured from door edge

Notes

• NOT recommended for doors with inset greater than 1/8”, for example: double egress frames, or jamb depths over 5-3/4” or greater - for additional information, contact us

• Center line prep is 40” (1016 mm) - if door prep elevation is lower, a longer top rod will need to be ordered

• Recommended for use on appropriately reinforced doors

Hager 4500 Non Fire Rated Exit Device Certifications and Compliance

Hager 4500 Exit Device Profile
