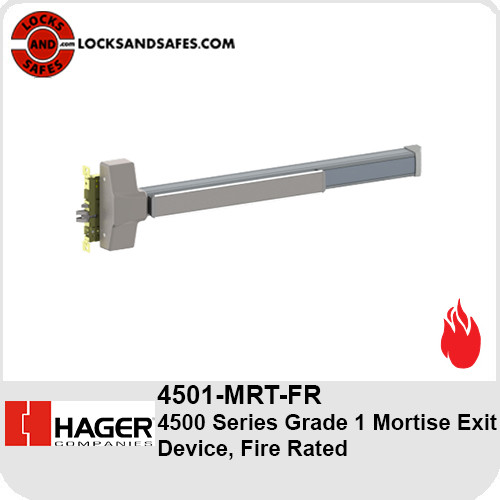

Hager 4501 MRT FR | Hager 4500 Series Grade 1 Mortise Exit Device, Fire Rated
FEATURES
Covers
Stainless steel, zinc
Cover Tube
Aluminum
Dogging
• Hex key dogging standard on panic-rated devices
• Less dogging available on panic-rated devices, specify LD
• Cylinder dogging is available on panic-rated devices, specify CD (3902 mortise cylinder with standard cam sold separately. Cylinder Length of 1-1/8” (29mm) - 1-3/8” (35mm) is required.)
End Cap
Flush (Zinc)
Fasteners
• Wood and machine screws
• Thru-bolts supplied standard
Latchbolt
3/4” (19 mm) throw with anti-friction tongue, all stainless steel with auxiliary deadlocking latch
Strikes
4-7/8” (124 mm) ASA strike-standard
SPECIFICATIONS
Door Thickness
1-3/4” (44 mm) - Standard
Door Width
• 36’’ (914 mm) field sizeable to 30’’ (762 mm) panic-rated door and 28” (711 mm) fire-rated door
• 48’’ (1219 mm) field sizeable to 36’’ (914 mm) panic- or fire-rated door
Projection
• 3” (76 mm) in undogged position
• 2-5/8” (67 mm) in dogged position
Stile Width
• 4-1/2” (114 mm)
• All stile widths are measured from door edge.
Notes
Recommended for use on appropriately reinforced doors
Hager 4500 Fire Rated Exit Device Certifications and Compliance
Hager 4500 Exit Device Profile
