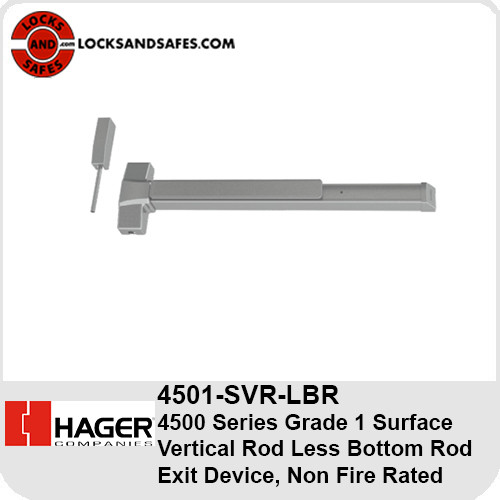

Hager 4501 SVR LBR | Hager 4500 Series Grade 1 Surface Vertical Rod Less Bottom Rod Exit Device, Non Fire Rated

Hager 4501 SVR LBR | Hager 4500 Series Grade 1 Surface Vertical Rod Less Bottom Rod Exit Device, Non Fire Rated

FEATURES

Covers

Stainless steel, zinc

Cover Tube

Aluminum

Dogging

• Hex key dogging standard on panic-rated devices

• Less dogging available on panic-rated devices, specify LD

• Cylinder dogging is available on panic-rated devices, specify CD (3902 mortise cylinder with standard cam sold separately. Cylinder Length of 1-1/8” (29mm) - 1-3/8” (35mm) is required.)

End Cap

Flush (Zinc)

Fasteners

• Wood and machine screws

• Thru-bolts supplied standard

Latchbolt

• Top - 1/2” (13 mm) throw, pullman type with automatic dead-latching, stainless steel

Strikes

• Stainless steel with stainless steel pin and roller - included standard with panic device

• Solid stainless steel - included standard with fire-rated device

• Surface applied to frame with slotted holes for easy adjustment

• Double door strike for use with surface vertical rod and rim device available

SPECIFICATIONS

Door Thickness

1-3/4” (44 mm) - Standard up to 3”, except with night latch (NL) function escutcheon trim which is 2-1/2”

Door Width

• 36’’ (914 mm) field sizeable to 30’’ (762 mm) panic-rated door and 28” (711 mm) fire-rated door

• 48’’ (1219 mm) field sizeable to 36’’ (914 mm) panic- or fire-rated door

Projection

• 3” (76 mm) in undogged position

• 2-5/8” (67 mm) in dogged position

Vertical Rods

• Rods for 7’ (2134 mm) doors - 33-1/4” (845 mm) top rod length

• Rods for 8’ (2438 mm) doors - 45-1/4” (1149 mm) top rod length

• Extension rods kits available, 2’ (610 mm) or 3’ (914 mm) for doors over 7’

Stile Width

• 5-3/8” (137 mm) - Minimum stile width required for single door and 5/8” (16 mm) stop

• 4-7/8” (124 mm) - Minimum stile width required for double doors

• 4-7/8” (124 mm) - Minimum stile width required for double door x Rim Device with double door strike

• All stile widths are measured from door edge

Notes

• Hole plug for head cover included standard

• Recommended for use on appropriately reinforced doors

• A spring loaded fire bolt 2-649-0166 must be used on fire-rated LBR devices used on a pair of doors to ensure the device’s fire rating

Hager 4500 Non Fire Rated Exit Device Certifications and Compliance

Hager 4500 Exit Device Profile
