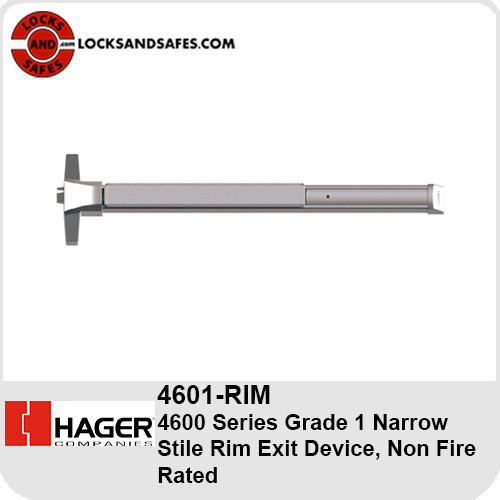

Hager 4601 Rim | Hager 4600 Series Grade 1 Narrow Stile Rim Exit Device, Non Fire Rated

Hager 4601 Rim | Hager 4600 Series Grade 1 Narrow Stile Rim Exit Device, Non Fire Rated

FEATURES

Covers: Stainless steel, zinc

Cover Tube: Aluminum

Dogging:

• Hex key dogging standard on panic-rated devices

• Less dogging available on panic-rated devices, specify LD

• Cylinder dogging available on panic-rated devices, specify CD 3902 mortise cylinder with standard cam sold separately. Cylinder Length of 1-1/8” (29mm) - 1-3/8” (35mm) is required.

End Cap:

Flush (Zinc)

Fasteners:

• Thru-bolts supplied standard

Latchbolt: 3/4” (19 mm) throw, pullman type with automatic dead-latching, stainless steel

Strikes:

• Blade stop (4950) - Standard with panic device

• Fire-rated strike (4920F) - Standard with fire-rated device

• Standard strike (4920) - Optional

• Single rabbit strike (4951) - Optional

• Semi-flush mount strike (4952) - Optional

SPECIFICATIONS

Door Thickness: 1-3/4” (44 mm) - Standard up to 3”, except with night latch (NL) which is 2-1/2”

Door Width:

• 36’’ (914mm) field sizeable to 30’’ (762mm) panic-rated door and 28” (711mm) fire-rated door for devices with any monitoring switches

• 48’’ (1219mm) field sizeable to 36’’ (914mm) panic- or fire-rated door for devices with any monitoring switches

• 36” (914mm) field sizeable to 34” (864mm) door minimum for devices with motorized electric latch retraction

• 36” (914mm) door minimum for devices with electric dogging, alarm kit, or delayed egress

• 48” (1219mm) field sizeable to 42” (1067mm) door minimum for devices with electric dogging or alarm kit

• 48” (1219mm) field sizeable to 40” (1016mm) door minimum for devices with motorized electric latch retraction

• 48” (1219) door minimum for devices with delayed egress

Projection:

• 3” (76 mm) in undogged position

• 2-5/8” (67 mm) in dogged position

Stile Width:

• 2-1/8” (54 mm) - Minimum stile width required for 1/2” (13 mm) blade stop frame and 4950 blade stop strike

• 3-1/4” (83 mm) - Minimum stile width required for single door, 5/8” (16 mm) stop and 4920 standard strike

• 3-3/4” (95 mm) - Minimum stile width required for double door x mullion x 4920 strike

• 2-3/4” (70 mm) - Minimum stile width required for double doors with 2” (51 mm) mullion and 4952 semi-flush mount strike

• All stile widths are measured from door edge

Notes:

• Recommended for use on appropriately reinforced doors

• Where fire rated rim x rim x mullion is used order 4912 Strike and Hook Kit

Hager 4600 Exit Device Compliance and Certifications

Hager 4600 Exit Device Profile
