FEATURES

Covers: Cast brass, bronze, stainless steel, zinc

Cover Tube: Painted steel, plated steel, stainless steel

Dogging: Hex dogging feature standard on non-fire labeled doors

End Caps: Painted steel, plated steel, stainless steel

Fasteners:

• Wood and machine screws

• Thru-bolts supplied standard Latchbolt: 3/4” (19 mm) throw, pullman type with automatic dead-latching, stainless steel

Strikes:

• Stainless steel with stainless steel pin and roller - included standard with panic devices

• Solid stainless steel - included standard with fire-rated device

• Surface applied to frame with slotted holes for easy adjustment

• Optional double door strike for use with surface vertical rod and rim devices

SPECIFICATIONS

Door Thickness: 1-3/4” (44 mm) - Standard

Door Width:

• 36’’ (914 mm) field sizeable to 30’’ (762 mm) door

• 48’’ (1219 mm) field sizeable to 36’’ (914 mm) door

Projection:

• 2-7/16” (62 mm) in undogged position

• 1-3/16” (30 mm) in dogged position

Stile Width:

• 4-1/2’’ (114 mm) - minimum stile width required for single door and 5/8” (16 mm) stop

• 4-1/2’’ (114 mm) - minimum stile width required for double door x surface vertical rod device with double door strike

• 5” (127 mm) - minimum stile width required for double doors with 2” (5 1 mm) mullion

• All stile widths are measured from door edge

Notes:

• Cylinders sold separately

• Escutcheon and thumbpiece pull plate trim is handed

• Apollo knob is not ADA compliant

• Recommended for use on appropriately reinforced doors

• Where fire rated rim x rim x mullion is used order 4916 Strike and Hook Kit

Hager 4700 Fire Rated Compliance and Certifications

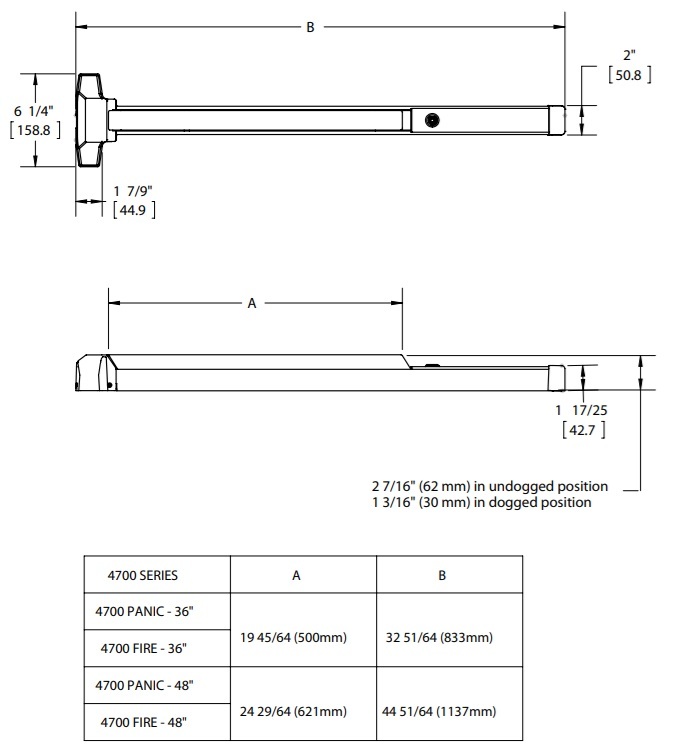

Hager 4700 Exit Device Profile
