Adams Rite Exit Device Documentation
-->
Adams Rite 8800 - Narrow Stile Rim Exit Device
The Adams Rite 8800 series exit devices are a high quality product made by Adams Rite, a leader in door opening solutions. The 8800 series exit devices are designed for use on narrow stile aluminium doors. The major feature of these aluminium door exit devices is that they come with Starwheel interlocking solution (read below). The Starwheel interlocking solution provides higher security and prevents jamb spreading of the exit device.
The 8800 aluminium door exit devices can be used on both single and paired doors. When using with paired doors, a mullion can be used which allows the device to be installed without having to narrow the door. This feature provides higher security and better management of traffic.
The Adams Rite 8800 aluminium door exit devices are available in many different options, which cater to many different door requirements. The pushbar is available for a variety of different door sizes, and the exit devices can be equipped with monitoring options. Choose from a variety of finishes¹ which best suit your requirements and will blend seamlessly with your door color and surroundings. The exit devices can also be equipped with electrification options such as Motorized Latch Retraction, Electric Latch Retraction (EL), Electric Dogging, Alarm Monitoring, Cylinder Dogging. Call us now, if you are looking for an electrification option, or if you have any queries regarding these Adams Rite 8800 aluminium door exit devices.
¹Check out our detailed Door Hardware Finishes Guide for more information on different types of Door Hardware finishes.

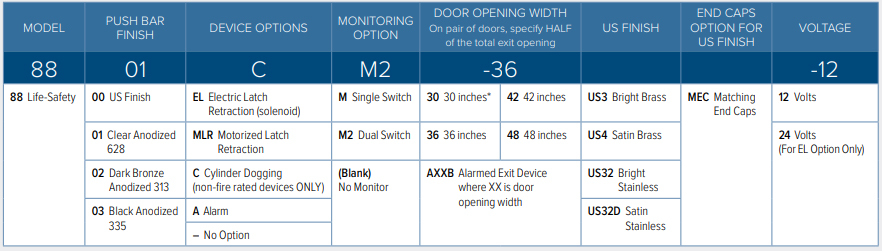

How to Order
8800 Rim Exit Device
| MODEL | PUSH BAR FINISH | DEVICE OPTIONS | MONITORING OPTION | DOOR OPENING WIDTH | US FINISH | END CAPS OPTION FOR US FINISH | VOLTAGE | |
|---|---|---|---|---|---|---|---|---|
| 88 | 01 | C | M2 | -36 | -12 | |||
| 88 Life Safety | 00 = US Finish | EL = Electric Latch Retraction (solenoid) | M = Single Switch | 30 = 30 inches* | 42 = 42 inches | US3 = Bright Brass | MEC = Matching End Caps | 12 = Volts |
| 01 = Clear Anodized 628 | MLR = Motorized Latch Retraction | M2 = Dual Switch | 36 = 36 inches | 48 = 48 inches | US4 = Satin Brass | 24 = Volts (For EL Option Only | ||
| 02 = Dark Bronze Anodized 313 | C = Cylinder Dogging (non-fire rated devices ONLY) | (Blank) = No Monitor | AXXB = Alarmed Exit Device where XX is door opening width | US32 = Bright Stainless | ||||
| 03 = Black Anodized 335 | -No Option | US32D = Satin Stainless | ||||||
Certifications
UL 305 Panic Hardware
ANSI/BHMA A156.3-2008 Grade 1
ANSI/BHMA A156.3-2014 Grade 2
Features
Materials
The push bar of the Adams Rite 8800 Aluminium Door Exit Devices is made of extruded aluminum, clad or anodized in a variety of finishes.
Handing
Device is non-handed.
Push bar Length
Standard sizes: dimensioned for 30" [762.0 mm], 36" [914.4 mm], 42" [1,066.8 mm], and 48" [1,219.2 mm] openings.
Standard width bars can be field cut to the next smallest opening width.
Door Thickness
Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].
Stile Width
Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
Projection
2-5/8" [66.7 mm] when fully projected, 1-5/8" [41.3 mm] when dogged.
Dogging
Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.
Fasteners
The Adams Rite 8800 Aluminium Door Exit Devices utilizes standard machine screws.
Cylinders
Select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder. Available separately.
Cylinder x Fixed Pull Functions
For function 03 (Night latch - key releases latch) select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder
Entry Trim Functions
For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4 mm] to 1-1/4" [31.8 mm]. Available separately.
Strike
Standard strike and narrow versions for centering doors in 4" jamb (both strikes included).
Finishes
Split finish available upon request.
Click here for our Definitive List of Door Hardware Finishes
Standard Package
Individually boxed.
Shipping Weight
10 lbs [4.54 kg]
Removable Mullion
Allows the use of rim exit devices on paired doors without narrowing the doors. Provides higher security and better traffic flow than paired doors with vertical rod exit devices.
3890 Aluminum Mullion available separately. Select for use with doors up to 8' [2.44 m] or 10' [3.05 m]. Available in 313 Dark bronze anodized or 628 Clear anodized finish.
Options
Electrification Options Motorized Latch Retraction, Electric Latch Retraction (EL), Electric Dogging, Alarm Monitoring, Cylinder Dogging, Matching End Caps
Startwheel Bolt
1. When door closes, the interlocking noseguard and Starwheel bolt close around the strike. The deadlocking slide spring over, locking the Starwheel bolt to the strike.
2. When push bar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike. This unique interlock provides solid security and prevents jamb spreading.

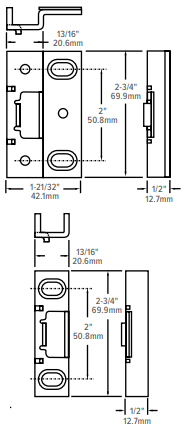

Strike Dimensions
